KW1 Multi-protocol Convergence Intelligent Gateway
KW1 Multi-protocol Convergence Intelligent Gateway

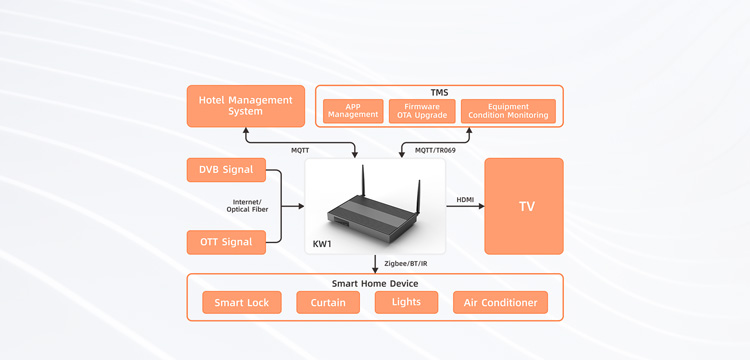

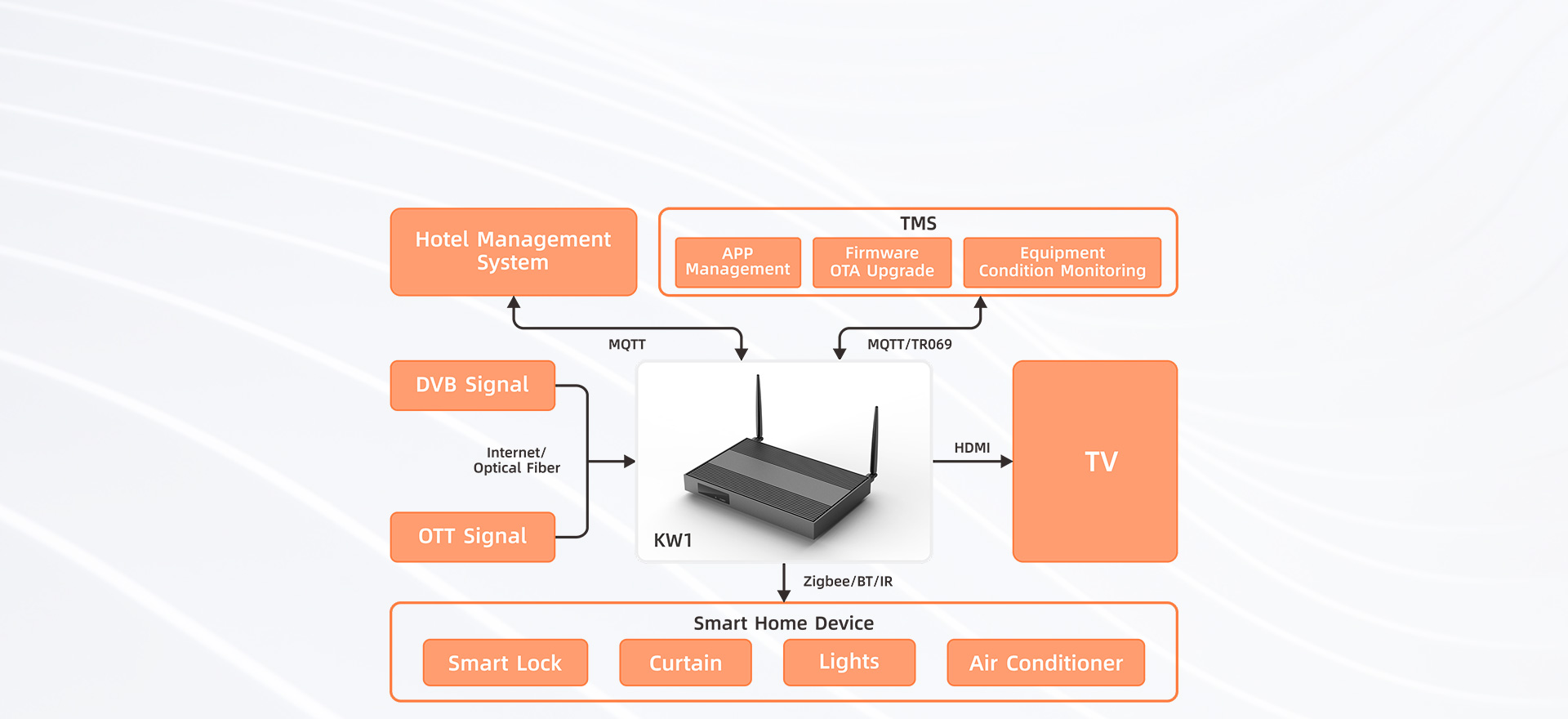

Videostrong Smart Hotel Gateway Device SolutionVideostrong Smart Hotel Gateway Device Solution
Applied to Smart Hotel Gateway Solution

OTT hardware devices integrating Zigbee/Zwave gateway function (convergence gateway).
Support OTT convergence gateway and IoT Terminal device management.

Applied to Smart Hotel Gateway Solution

OTT hardware devices integrating Zigbee/Zwave gateway function (convergence gateway).
Support OTT convergence gateway and IoT Terminal device management.

Videostrong Smart Home IoT Devices ControlVideostrong Smart Home IoT Devices Control
Smart Home IoT Devices Control

Smart Home IoT Devices Control

KW1 support DVB-S/S2 DVB-T/T2 DVB-C StandardKW1 support DVB-S/S2 DVB-T/T2 DVB-C Standard
For DVB-S/S2, DVB-T/T2 or DVB-C Standard

Receive live digital TV channels from any terrestrial, satellite or cable source.
Support standard definition, high definition and 4K video playback.

For DVB-S/S2, DVB-T/T2 or DVB-C Standard

Receive live digital TV channels from any terrestrial, satellite or cable source.
Support standard definition, high definition and 4K video playback.

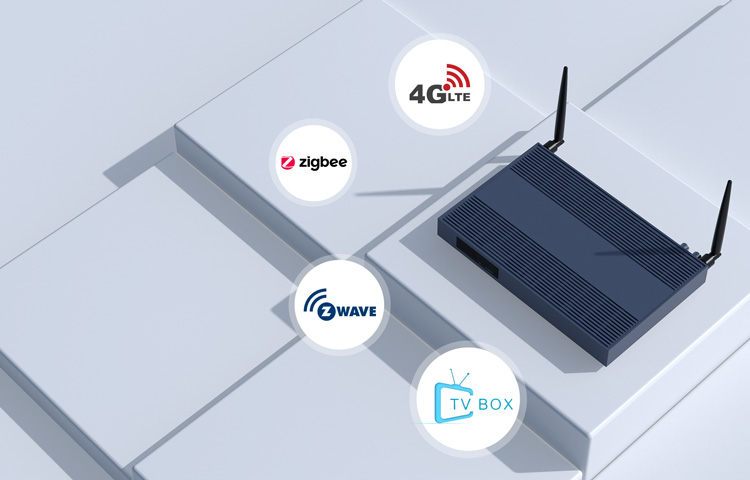

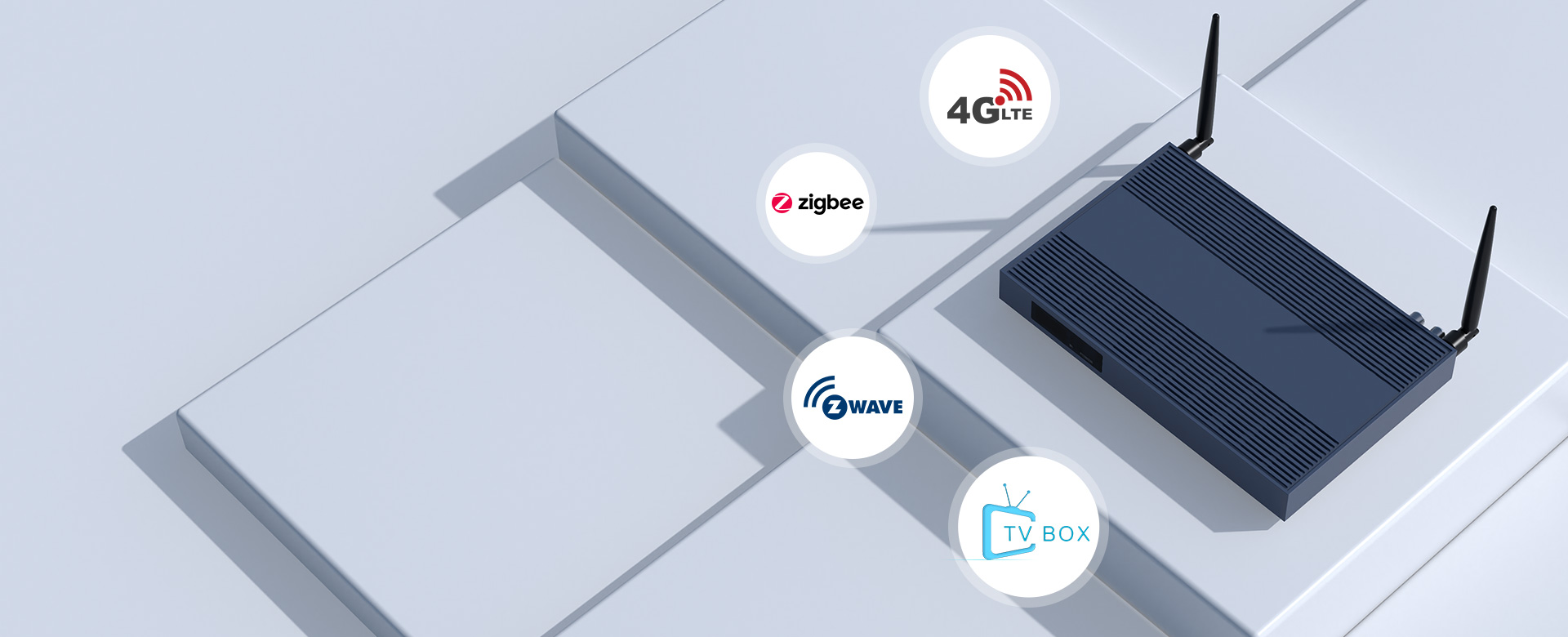

Videostrong Supports Gateway CustomizationVideostrong Supports Gateway Customization
Supports Hardware Customization

Supports Hardware Customization

Product specification
  • CPU

    Quad core ARM Cortex-A55

  • GPU

    ARM Mali-G31 MP2 OpenGL ES 3.2

  • OS

    Android 11.0

  • RAM

    2/4GB (Optional)

  • ROM

    16/32/64GB (Optional)

  • LAN

    1000M Ethernet port

  • WiFi

    Built in 2T2R 2.4G/5G WiFi
    Support IEEE 802.11 b/g/n/ac

  • BT

    BT5.0

  • DVB

    T/T2/C/S/S2/ISDBT/ATSC (Optional)

  • 4G

    Support (Optional by region)

  • Zigbee

    Support ZigBee 3.0 standard

  • Z-wave

    Support (Optional by region)

  • POE

    Support IEEE 802.3af

  • Indicator

    The standby mode is red, the working mode is blue

  • HDR

    Supports HDR10+,HDR10, HLG and Technicolor,HDR processing

  • Video Decorder

    4K@60fps 10btis AV1, VP9 P-2, AVS2,4K@30fps H.264

  • Video Encoder

    H.264 1080P@30fps

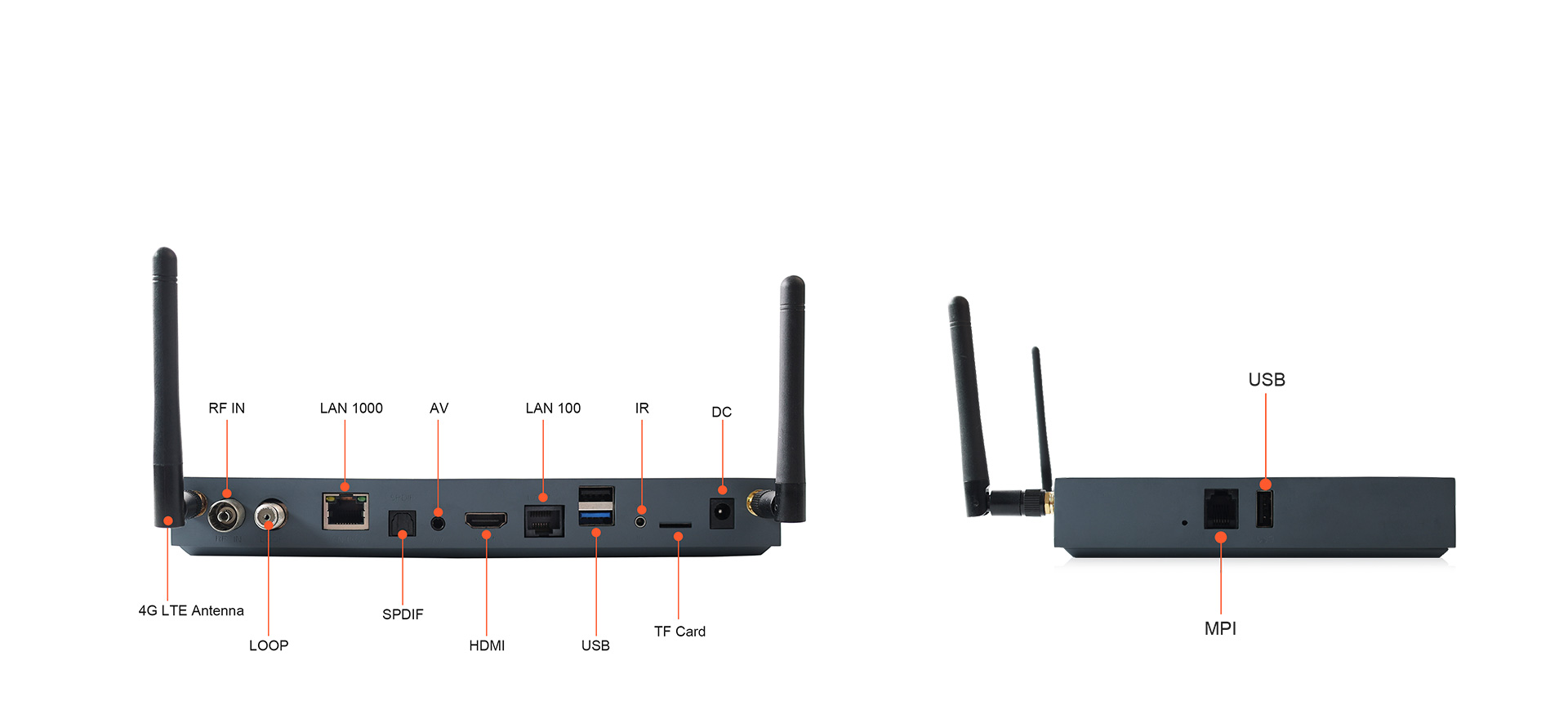

  • Ports

    1* HDTV 2.1 Dynamic HDR 4Kx2K@60 max resolution output
    1* USB 2.0 OTG
    1* USB 3.0
    1* USB 2.0
    1* Optical port
    1* MPI(USA)
    1* 2.5 IR
    1* 3.5 Headphone jack
    1* RJ45 1000M LAN
    1* DC 12V/1.5A
    1* TUNER (RF IN, LOOP)
    2*4G LTE Antenna

  • Size

    220*142*29MM

  • Weight

    300g
