KA3D 3D Camera Smart Box
KA3D 3D Camera Smart Box

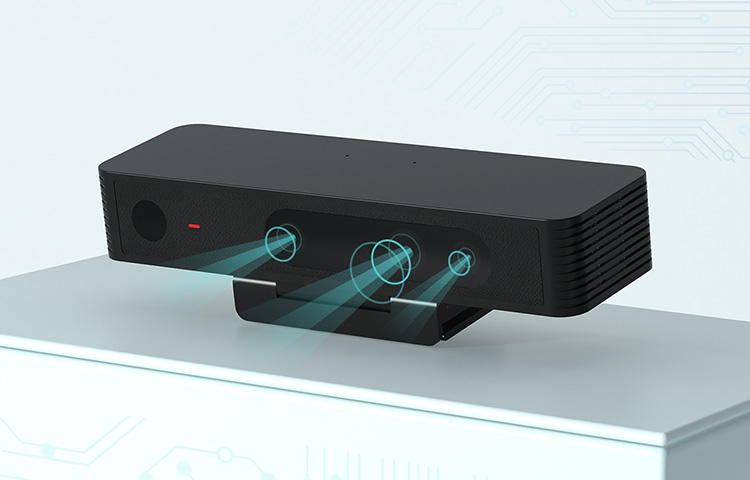

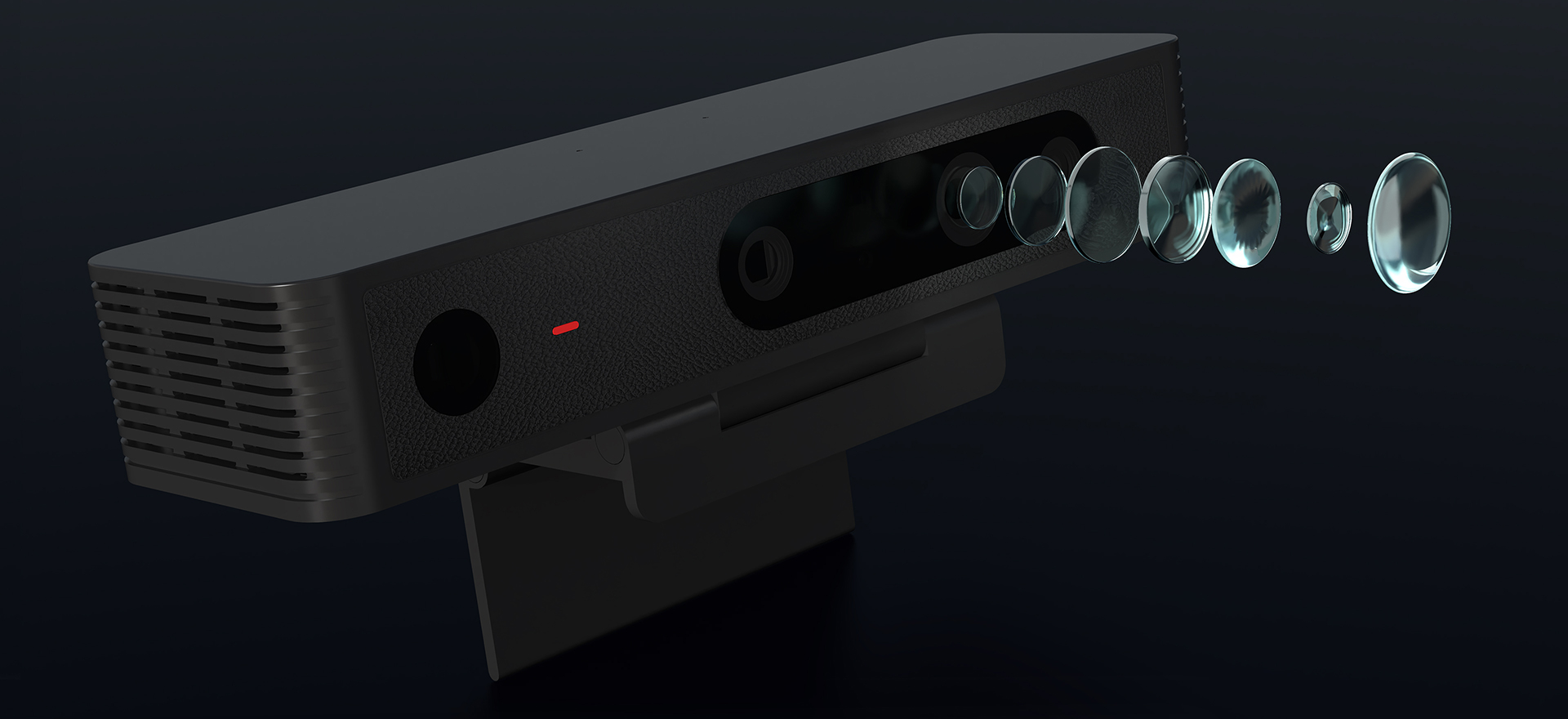

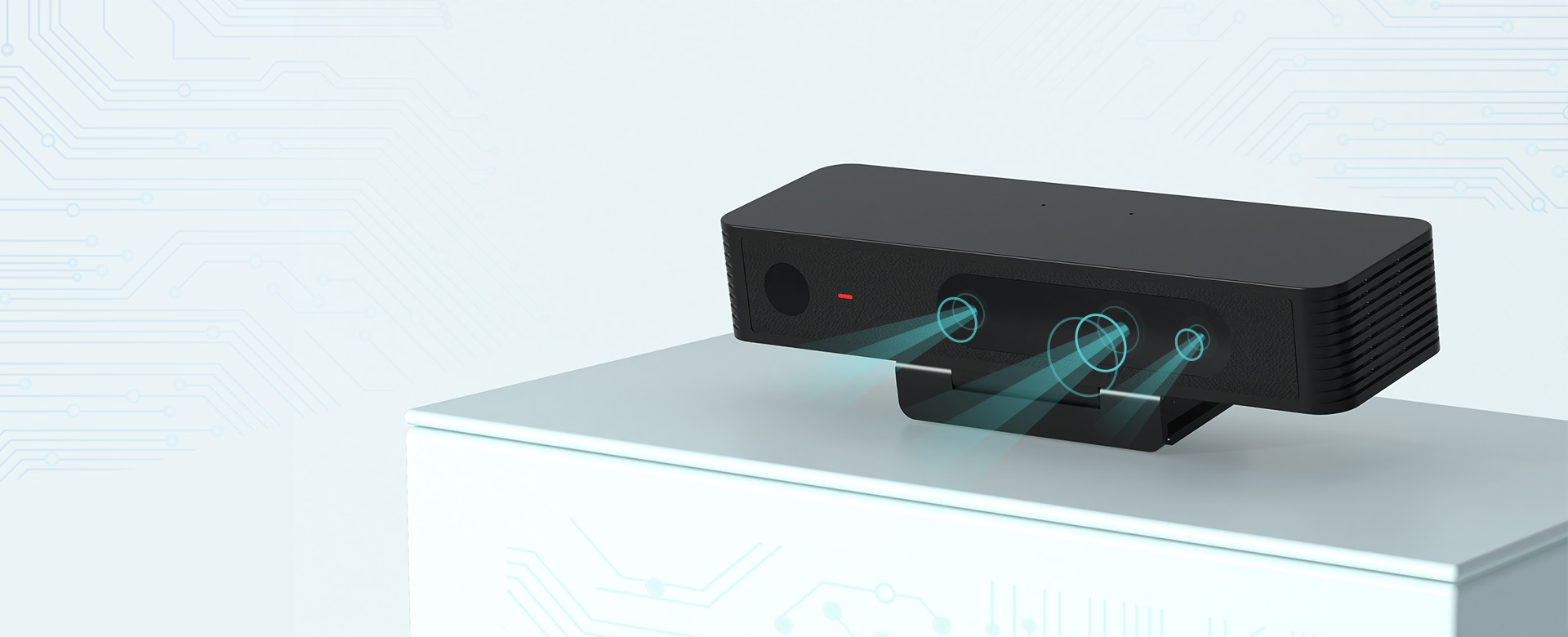

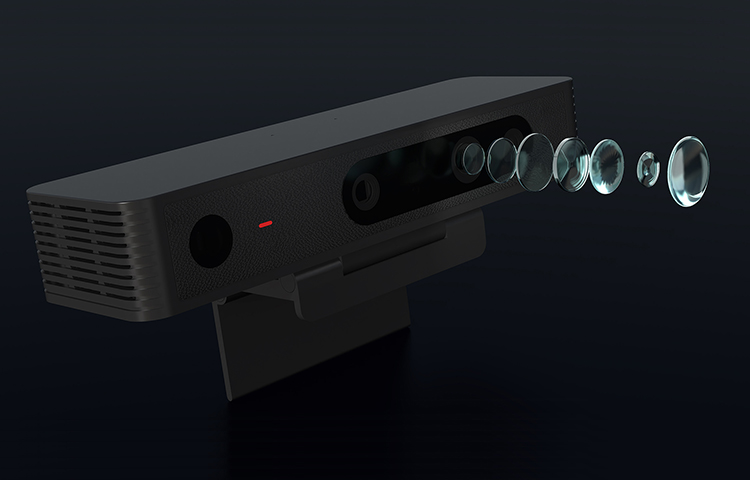

KA3D cameraKA3D camera
3D Depth Camera Integrated Android TV Box

KA3D can be used in smart fitness, entertainment games, elderly care at home, security monitoring, smart home, online education and other fields.

3D Depth Camera Integrated Android TV Box

KA3D can be used in smart fitness, entertainment games, elderly care at home, security monitoring, smart home, online education and other fields.

Smart AI Home FitnessSmart AI Home Fitness
Smart AI Home Fitness

Giving user real-time feedback and posture corrections.

Smart AI Home Fitness

Giving user real-time feedback and posture corrections.

Home-based care for the agedHome-based care for the aged
Sensing and monitoring the health status of aged

Make analysis and warning on risky behavior, timely send danger warning information to the institution offering services for the elderly.

Sensing and monitoring the health status of aged

Make analysis and warning on risky behavior, timely send danger warning information to the institution offering services for the elderly.

KA3D Android TV BOXKA3D Android TV BOX
Google-certified Android TV Streaming BOX

Google-certified Android TV Streaming BOX

KA3D Amlogic S905D3KA3D Amlogic S905D3
High performance 6 Core Processor

Support high speed computing.

High performance 6 Core Processor

Support high speed computing.

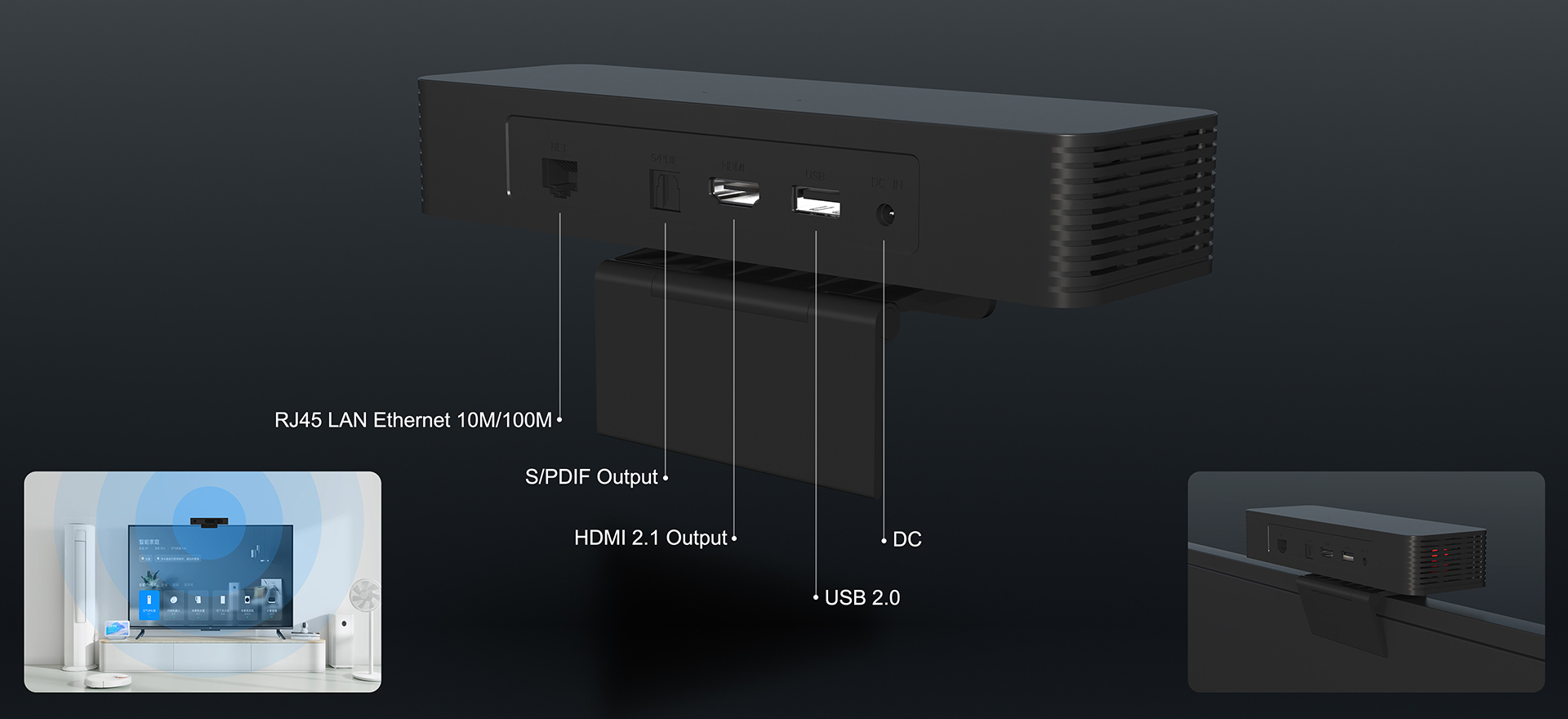

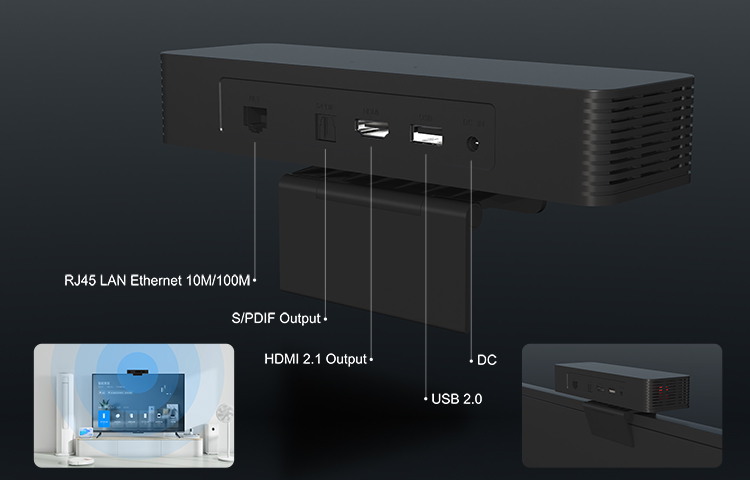

KA3D interfaceKA3D interface
Generous design, Easy to use

Generous design, Easy to use

Product specification
  • OS

    Android 9.0

  • NPU

    1 NNA with INT8 inference performance up to 1.2Tops

  • GPU

    ARM G31 MP2 GPU

  • RAM

    2GB LPDDR4 (4GB Optional )

  • ROM

    16GB EMMC (32/64GB Optional)

  • WiFi

    2.4G/5G 2T2R WiFi Support IEEE 802.11 a/b/g/n/ac

  • Bluetooth

    BT5.0

  • Microphone

    4*MEMS Mic

  • Camera

    baseline 75mm
    Range 0.6-8m
    Accuracy 1m@±3mm
    FOV Depth H55°&V45° | RGB H74°&V59°
    Depth Image Resolution 1280×1024@7FPS、640×480@30FPS
    RGB Image Resolution 2048×1536@15FPS、1920×1080@30FPS

  • Interface

    1* HDMI 2.1 Output, HDCP 2.2
    1* S/PDIF Output
    1* USB 2.0 HighSpeed
    1* RJ45 LAN Ethernet 10M/100M

  • Power Supply

    DC 12V/2A

  • Indicator light

    1* Red&Blue LED
