A311D
A311D

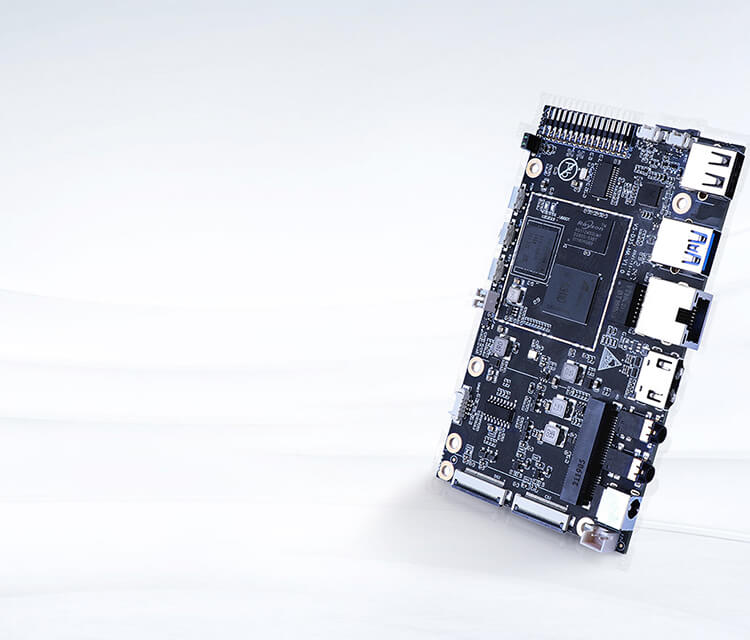

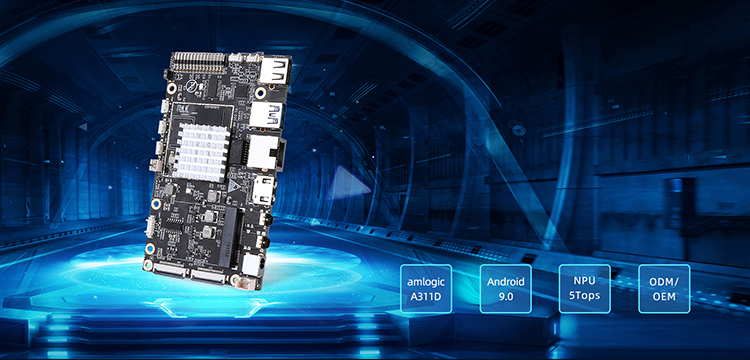

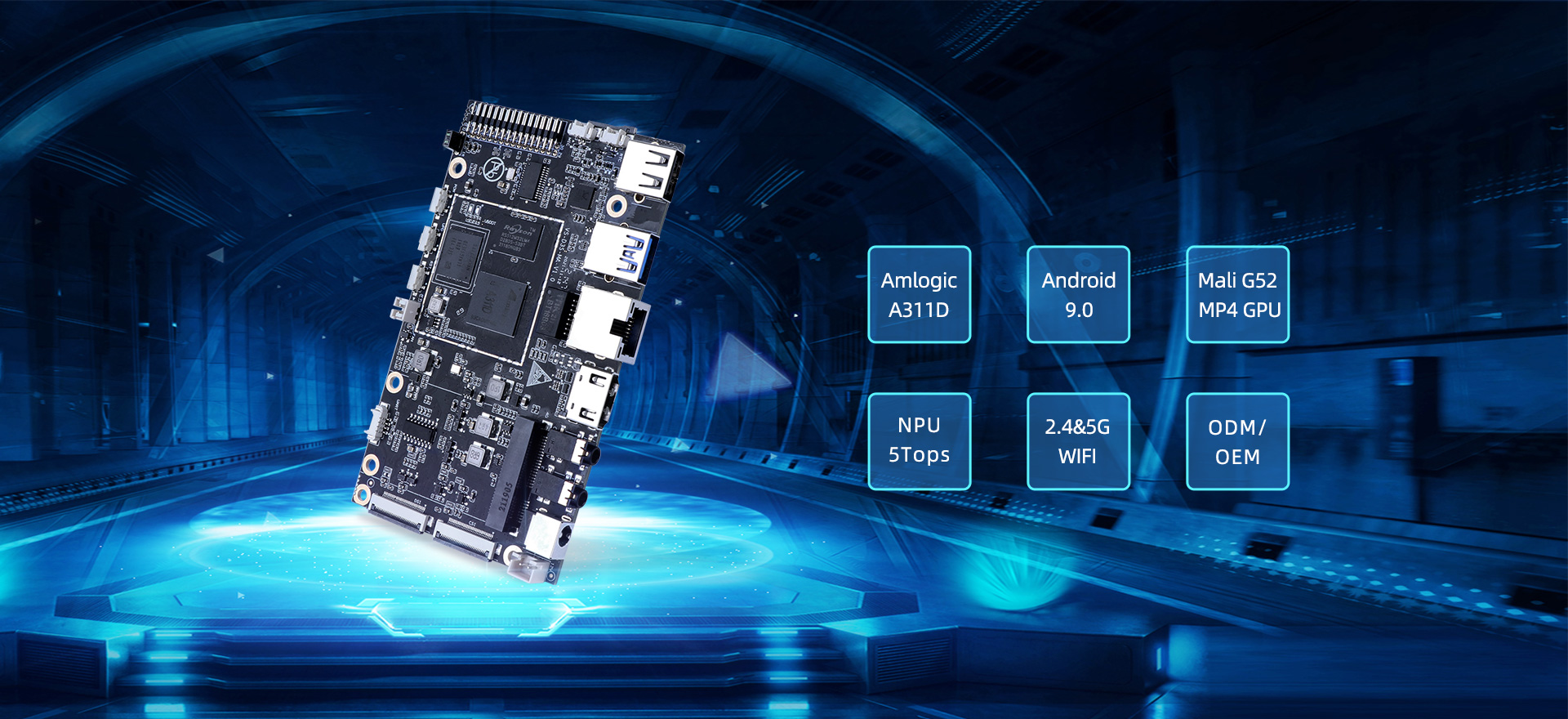

VS-D3S Android Smart Motherboard

VS-D3S is an Android smart motherboard with high performance, high reliability and rich expandability. Adopt Amlogic's latest generation of intelligent AI processor chip A311D, 12nm process, 4-core A73 + dual-core A53 size core design, main frequency up to 2.2GHz; built-in NPU with up to 5Tops computing power, support INT8 quantization for all deep learning architectures; Mali G52 MP4 GPU 4Kp75 10bit H265 high-definition decoding, 1080P60 encoding, rich communication interfaces, is the best choice for artificial intelligence, edge computing, smart imaging, smart home, video conferencing, smart self-service terminals and other industries.

VS-D3S Android Smart Motherboard

VS-D3S is an Android smart motherboard with high performance, high reliability and rich expandability. Adopt Amlogic's latest generation of intelligent AI processor chip A311D, 12nm process, 4-core A73 + dual-core A53 size core design, main frequency up to 2.2GHz; built-in NPU with up to 5Tops computing power, support INT8 quantization for all deep learning architectures; Mali G52 MP4 GPU 4Kp75 10bit H265 high-definition decoding, 1080P60 encoding, rich communication interfaces, is the best choice for artificial intelligence, edge computing, smart imaging, smart home, video conferencing, smart self-service terminals and other industries.

High-performance Smart Motherboard

Chip:A311D
OS:Android 9.0
Main frequency:2.2GHZ
Video decoding:4Kx2K@60fps+1x1080P@60fps
CPU:ARM Cortex-A73 and Cortex-A53
NPU:5 TOPS Performance NPU
GPU:ARM G52 MP4 GPU up to 800MHz

High-performance Smart Motherboard

Chip:A311D
OS:Android 9.0
Main frequency:2.2GHZ
Video decoding:4Kx2K@60fps+1x1080P@60fps
CPU:ARM Cortex-A73 and Cortex-A53
NPU:5 TOPS Performance NPU
GPU:ARM G52 MP4 GPU up to 800MHz

GPU:G52MP4

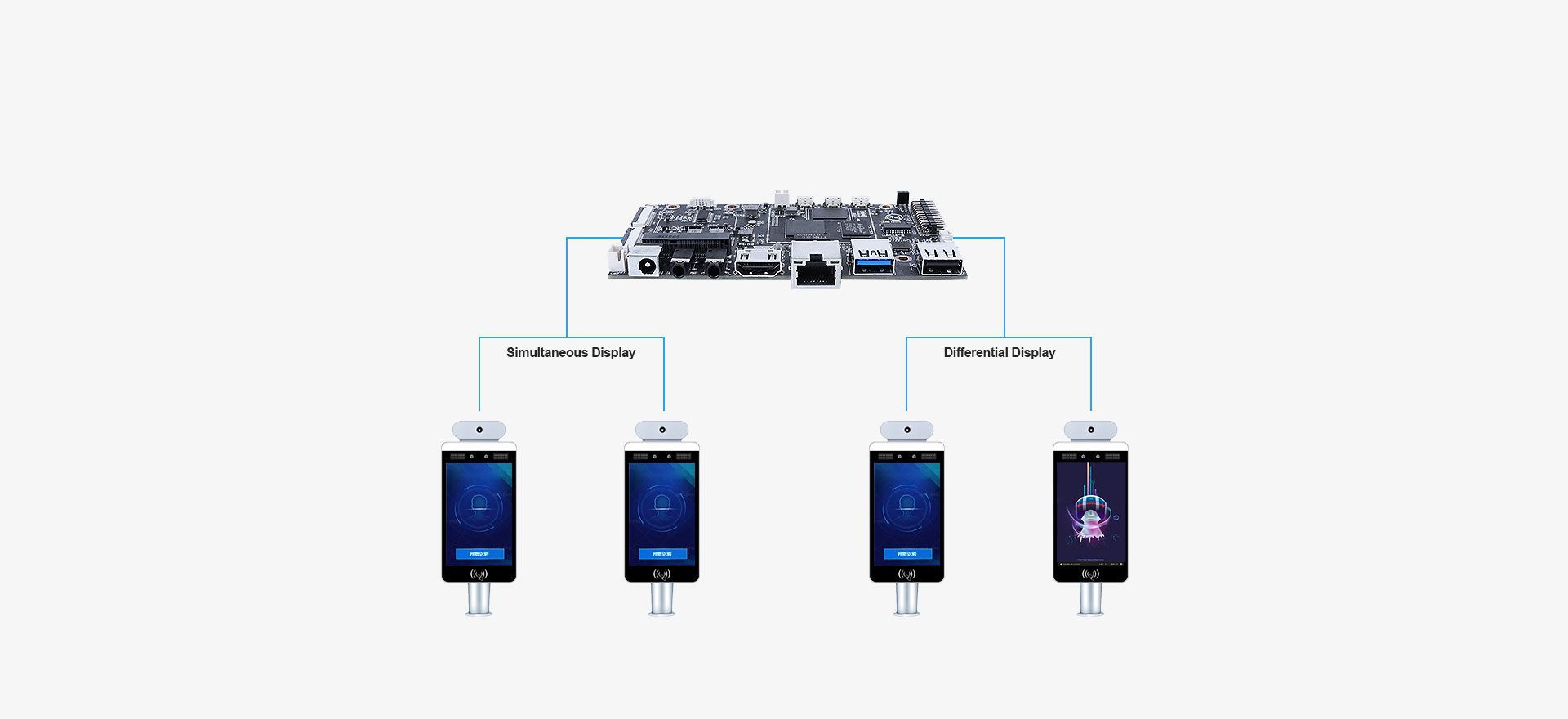

Support dual-screen simultaneous display and different display functions.
Excellent video encoding and decoding capabilities, 4Kp75 10bit H.265, VP9, AVS2 decoding, 4Kp30 H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding, the picture quality is clearer.

GPU:G52MP4

Support dual-screen simultaneous display and different display functions.
Excellent video encoding and decoding capabilities, 4Kp75 10bit H.265, VP9, AVS2 decoding, 4Kp30 H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding, the picture quality is clearer.

Rich Expansion Interface

USB:USB2.0_HOST*3、USB3.0_HOST&USB_OTG
Storage Card:TF-card Supporting 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104
Audio:S/PDIF Out、3.5mm phone jack、ECM MIC-IN

Rich Expansion Interface

USB:USB2.0_HOST*3、USB3.0_HOST&USB_OTG
Storage Card:TF-card Supporting 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104
Audio:S/PDIF Out、3.5mm phone jack、ECM MIC-IN

Powerful Network Communication Function

Support BT4.2
Support hotspot sharing
Support 2.4&5G dual-band Wi-Fi
Support 10/100M adaptive Ethernet
Support Mini-PCIE (USB2.0) to expand 3G/4G Internet access

Powerful Network Communication Function

Support BT4.2
Support hotspot sharing
Support 2.4&5G dual-band Wi-Fi
Support 10/100M adaptive Ethernet
Support Mini-PCIE (USB2.0) to expand 3G/4G Internet access

Wide Range of Applications

AI smart TV, AI robot, smart home control terminal, smart commercial display equipment, smart self-service terminal, new retail smart terminal, video conference main control terminal, O2O smart equipment.

Wide Range of Applications

AI smart TV, AI robot, smart home control terminal, smart commercial display equipment, smart self-service terminal, new retail smart terminal, video conference main control terminal, O2O smart equipment.

1. In-depth software and hardware customization can be carried out according to customer needs, and system API interface code can be provided, which can perfectly support the development of upper-level APP for customers, and can provide customers with special APP customization services.

2. It can support timing switch function, network wake-up and shutdown.

3. Excellent video encoding and decoding capabilities, 4Kp75 10bit H.265, VP9, AVS2 decoding, 4Kp30 H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding.

4. Rich external expansion interfaces: USB, Ethernet, HDMI, MIPIDSI, MIPI CSI, UART, I2S, SPI, I2C, SPDIF, etc.

5. Onboard MIPI DSI, CVBS, HDMI display interface, support the same display and different display output.


Product specification
  • CPU

    2.2GHz Quad core ARM Cortex-A73 and 1.8GHz dual core Cortex-A53 CPU

  • NPU

    5 TOPS Performance NPU
    INT8 inference up to 1536 MAC Supports all major deep
    learning works including TensorFlow and Caffe

  • GPU

    ARM G52 MP4 GPU up to 800MHz

  • eMMC

    Emmc5.1 8G/16G/32/64Goptional

  • DDR

    DDR4 2G/4Goptional

  • LPDDR4

    2G/3G/4Goptional

  • OS

    Android 9.0

  • Video/picture

    Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
    Supports multiple “secured” video decoding sessions and simultaneous
    decoding and encoding
    Video/Picture Decoding
    VP9 Profile-2 up to 4Kx2K@60fps
    H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
    AVS2-P2 Profile up to 4Kx2K@60fps
    H.264 AVC HP@L5.1 up to 4Kx2K@30fps
    H.264 MVC up to 1080P@60fps
    MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
    WMV/VC-1 SP/MP/AP up to 1080P@60fps
    AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
    MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
    MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
    RealVideo 8/9/10 up to 1080P@60fps
    Multiple language and multiple format sub-title video support
    MJPEG and JPEG unlimited pixel resolution
    decoding (ISO/IEC-10918)

  • Network

    2.4&5GDual frequency Wi-Fi support 802.11 a/b/g/n/ac ,Support hotspot
    sharing,BT4.2
    10/100M Adaptive Ethernet
    Mini-PCIE(USB2.0)expand 3G/4Ggo online

  • IR

    Support

  • Display

    CVBS&L/R OUT 3.5mm phone
    HDMI2.1 transmitter with 3D, Dynamic HDR and HDCP
    2.2/2.3, 4Kx2K@60 max resolution output
    MIPI_DSI 4lanes Interface

  • MIPI CSI

    4 lanes MIPI-CSI

  • USB

    USB2.0_HOST*3、USB3.0_HOST&USB_OTG

  • Storage Card

    TF-card Supporting 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104

  • Audio

    S/PDIF Out
    3.5mm phone jack
    ECM MIC-IN

  • LED

    Green*1,Red*1

  • Button

    power、reset、update

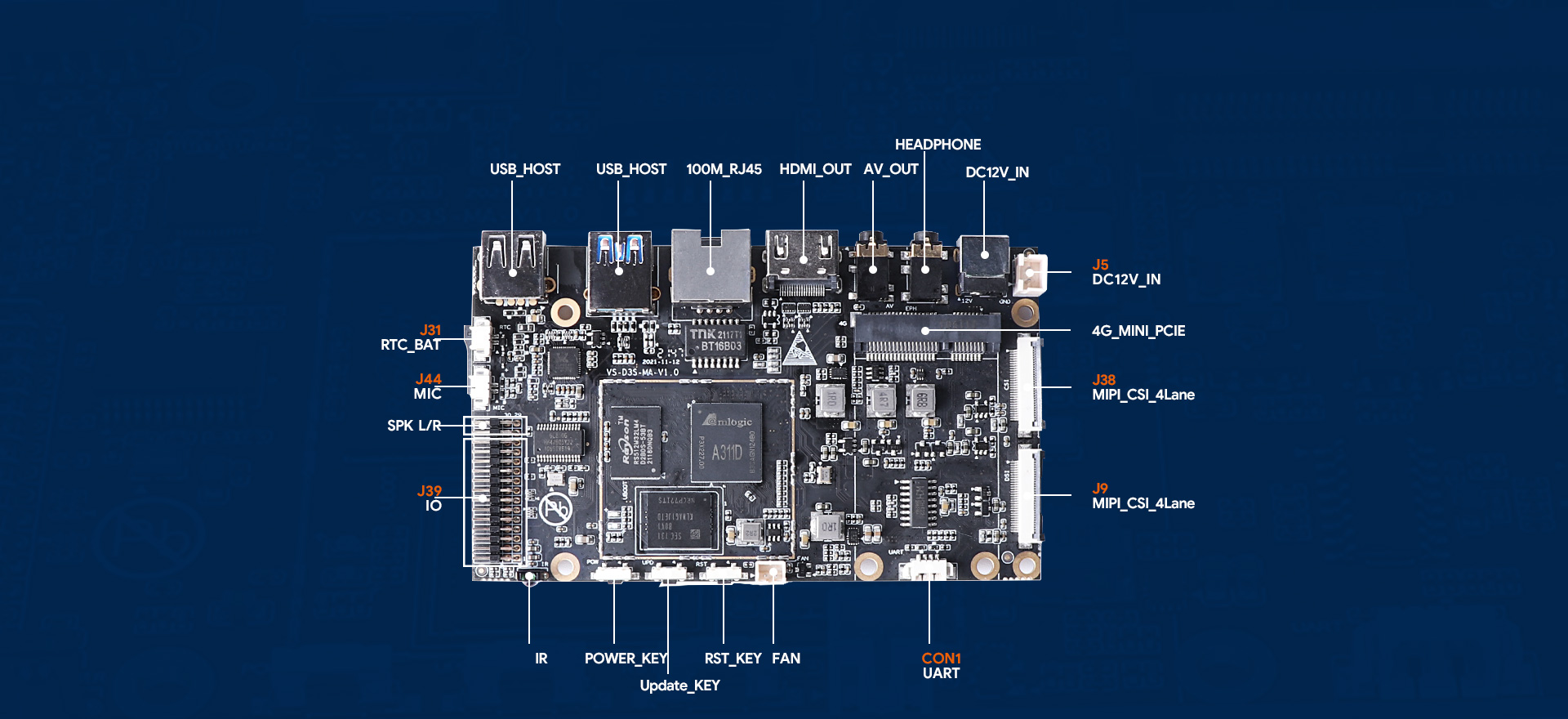

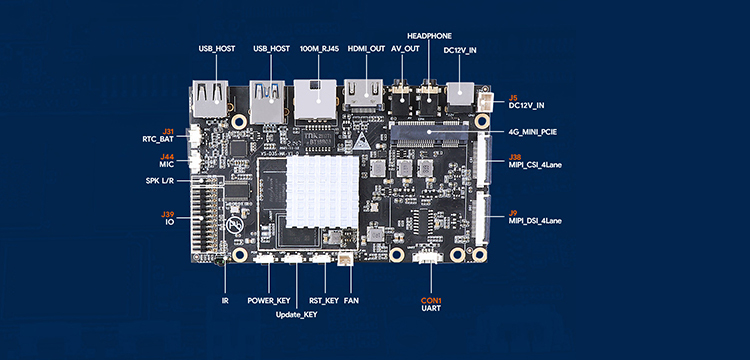

  • Interface

    100M RJ45*1
    MIPI_CSI*1
    MIPI_DSI*1
    HDMI_OUT *1
    CVBS_OUT*1
    USB2.0 Host *3、USB-OTG *1
    Mini-pcie*1(USB 3/4G) S/PDIF_OUT*1
    UART*2
    TF-Card Socket*1
    3.5mm phone jack*1
    Speaker R/L
    ADCKEY*1
    I2C*2
    I2S*1
    PDM &4channel
    GPIO*3
    ADC*2
    FAN*1

  • System upgrade

    support local USB upgrade, OTA upgrade
