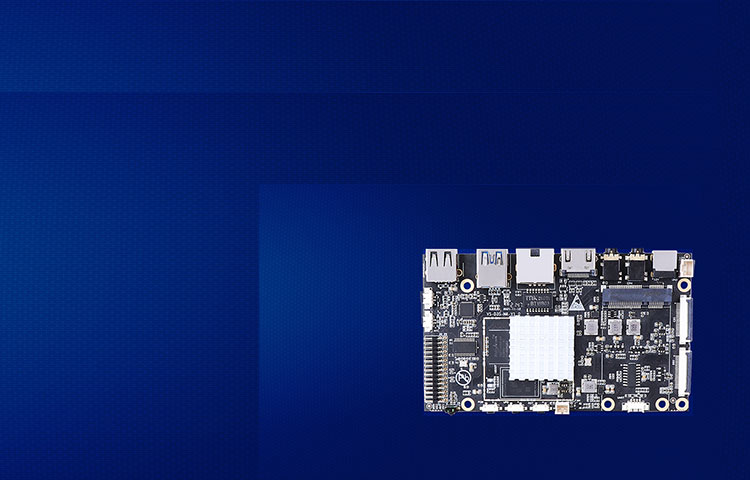

VS-D3 S905D3 development board
VS-D3 S905D3 development board

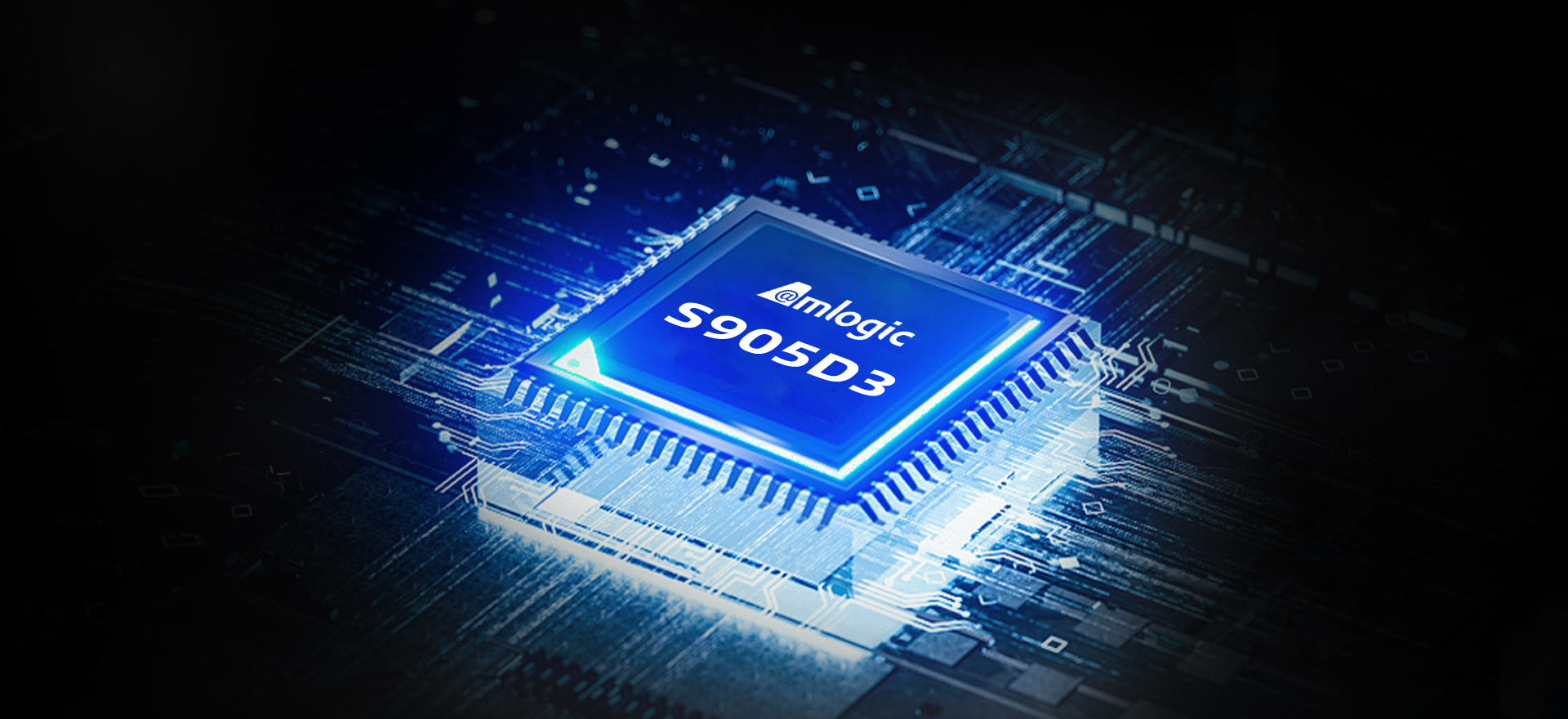

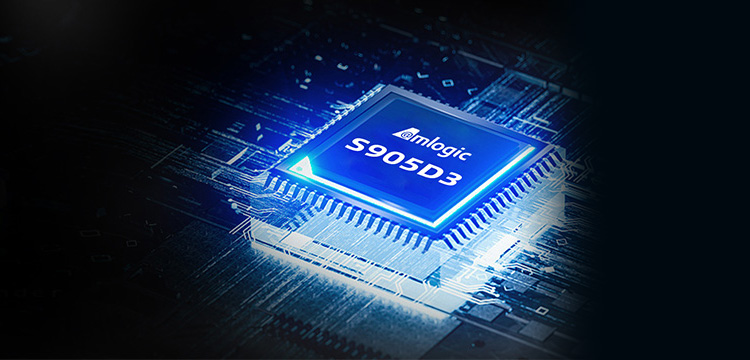

VS-D3 S905D3 ChipVS-D3 S905D3 Chip
High-performance Smart Motherboard

Powerful ARM 4-core A55, main frequency up to 1.9GHz.
Built-in NPU with up to 1.2Tops computing power, support INT8 quantization mainstream deep learning architecture.

High-performance Smart Motherboard

Powerful ARM 4-core A55, main frequency up to 1.9GHz.
Built-in NPU with up to 1.2Tops computing power, support INT8 quantization mainstream deep learning architecture.

Powerful Hard Decoding Capability

The AVE-10 is capable of decoding 4Kx2K resolution video at 60fps with full Trusted Video Path (TVP) for security applications and supports full formats including MVC, MPEG-1/2/4. VC-1/WMV, AVS, AVS+, AVS2 RealVideo, MJPEG streaming, H.264. H265-10. VP9 and JPEG images with no size limit. The standalone encoder is capable of encoding up to 1080p at 60fps in JPEG or H.265/H.264 format.

Powerful Hard Decoding Capability

The AVE-10 is capable of decoding 4Kx2K resolution video at 60fps with full Trusted Video Path (TVP) for security applications and supports full formats including MVC, MPEG-1/2/4. VC-1/WMV, AVS, AVS+, AVS2 RealVideo, MJPEG streaming, H.264. H265-10. VP9 and JPEG images with no size limit. The standalone encoder is capable of encoding up to 1080p at 60fps in JPEG or H.265/H.264 format.

Application Scenarios

Smart Home, Smart Education, Smart Projection, Smart Vehicle, KTV, Internet of Things, Smart Network Videophone, POS Machine, Digital Signage Hardware Platform, Hotel Smart Interactive TV, IPTV/DVB OTT Integration, Remote Smart Display System.

Application Scenarios

Smart Home, Smart Education, Smart Projection, Smart Vehicle, KTV, Internet of Things, Smart Network Videophone, POS Machine, Digital Signage Hardware Platform, Hotel Smart Interactive TV, IPTV/DVB OTT Integration, Remote Smart Display System.

Product specification
  • OS

    Android 9.0

  • CPU

    1.9GHz Quad core ARM Cortex-A55

  • NPU

    1.2 TOPS Performance NPU
    Support max frequency of 800MHz
    1 NN core with 768 INT 8 MAC
    8 Tensor Processors, 1 full functionality, 7 for AI voice

  • GPU

    ARM G31 MP2 GPU up to 800MHz

  • eMMC

    eMMC5.1 8G/16G/32/64G Optional

  • DDR

    DDR4 2G/4G Optional
    LPDDR4 2G/3G/4G Optional

  • Network

    WiFi 2.4G/5G 2T2R Support IEEE 802.11 a/b/g/n/ac
    Bluetooth 5.0
    10/100M
    Mini-PCIE(USB2.0)

  • Decoder

    - Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
    - Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
    - Video/Picture Decoding
    · VP9 Profile-2 up to 4Kx2K@60fps
    · H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
    · AVS2-P2 Profile up to 4Kx2K@60fps
    · H.264 AVC HP@L5.1 up to 4Kx2K@30fps
    · H.264 MVC up to 1080P@60fps
    · MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
    · WMV/VC-1 SP/MP/AP up to 1080P@60fps
    · AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
    · MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
    · MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
    · RealVideo 8/9/10up to 1080P@60fps
    · Multiple language and multiple format sub-title video support
    · MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

  • Encoder

    - Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate
    - JPEG image encoding
    - H.265 video encoding up to 1080P@60fps with low latency
    - H.264 video encoding up to 1080P@30fps with low latency
    - DVP (ITU 601/656) camera interface
    - Supports YUV or RGB camera input formats

  • Display

    CVBS&L/R OUT 3.5mm phone jack
    HDMI2.1 transmitter with 3D, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60 max resolution output
    MIPI_DSI 4lanes Interface

  • MIPI CSI

    4 lanes MIPI-CSI

  • USB

    USB2.0_HOST*3、USB3.0_HOST&USB_OTG*1

  • Storage Card

    TF-card Supporting 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104

  • Audio

    S/PDIF Out
    3.5mm phone jack
    ECM MIC-IN

  • Interface

    MIPI_CSI*1, MIPI_DSI*1, HDMI_OUT *1, CVBS_OUT*1, USB2.0 Host *3, USB-OTG *1, Mini-pcie*1(USB2.0 bus protocol), S/PDIF_OUT*1, 3.5mm phone jack*1 Speaker R/L, 100M RJ45*1, UART*2, TF-Card Socket*1, ADCKEY*1, I2C*2, I2S*1, PDM &4channel, GPIO*3, ADC*2, Cooling FAN*1

  • Update

    USB Update and OTA Update

  • Power supply

    DC12V/2A

  • Size

    118*70mm
