K21N300G10 | OTT+ONU+WiFi Smart Terminal
K21N300G10 | OTT+ONU+WiFi Smart Terminal

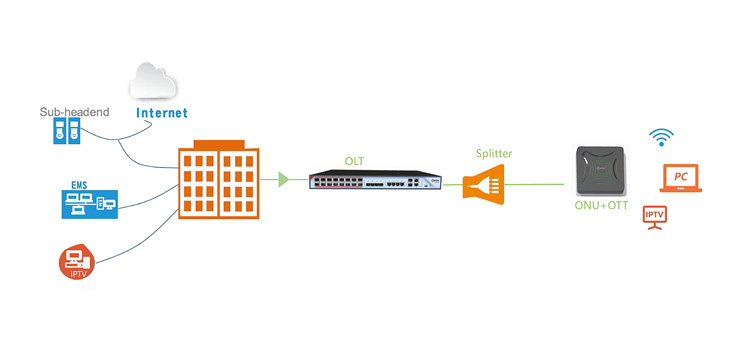

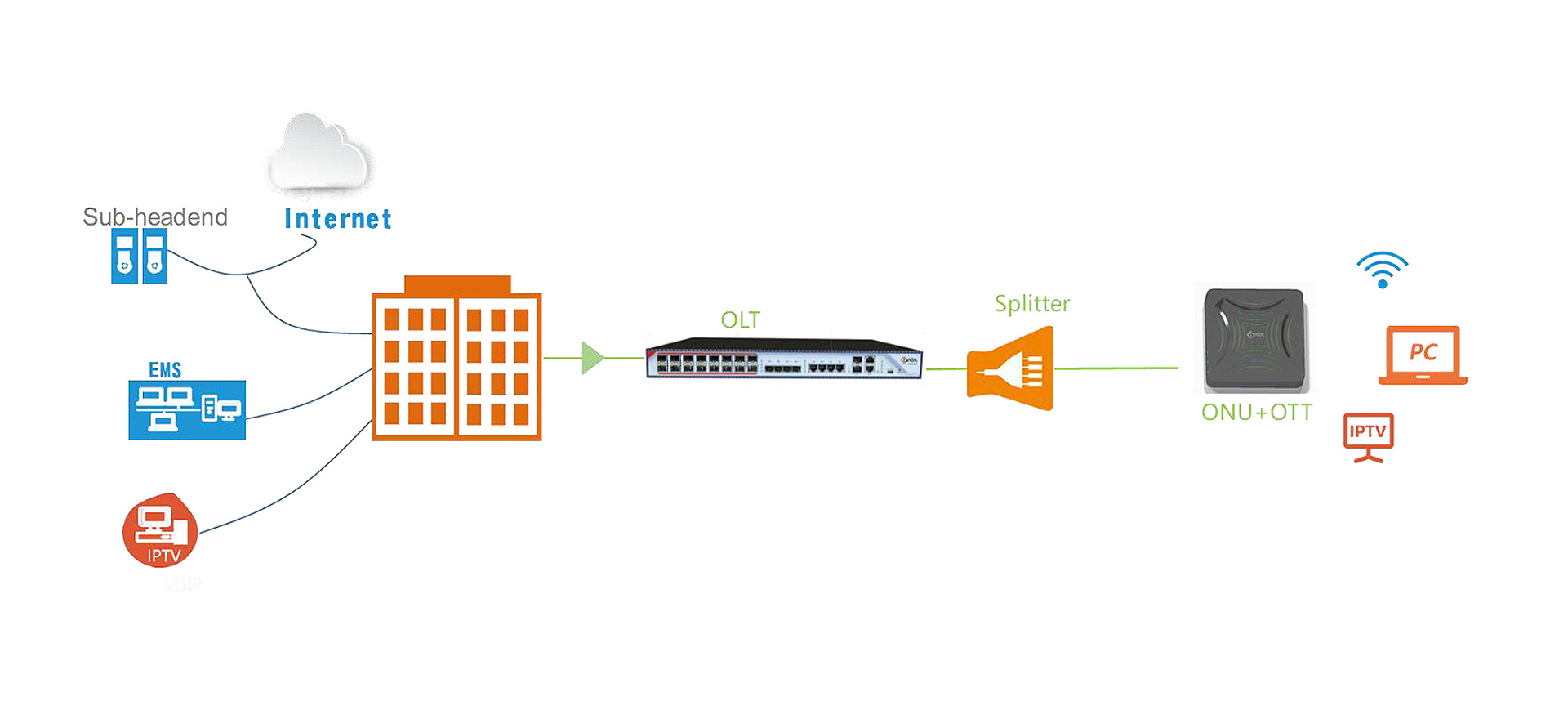

OTT+ONU+WiFi Network ApplicationOTT+ONU+WiFi Network Application
Network Application

Typical Solution: FTTH
Typical Business: Internet, IPTV, VoD, Wi-Fi

Network Application

Typical Solution: FTTH
Typical Business: Internet, IPTV, VoD, Wi-Fi

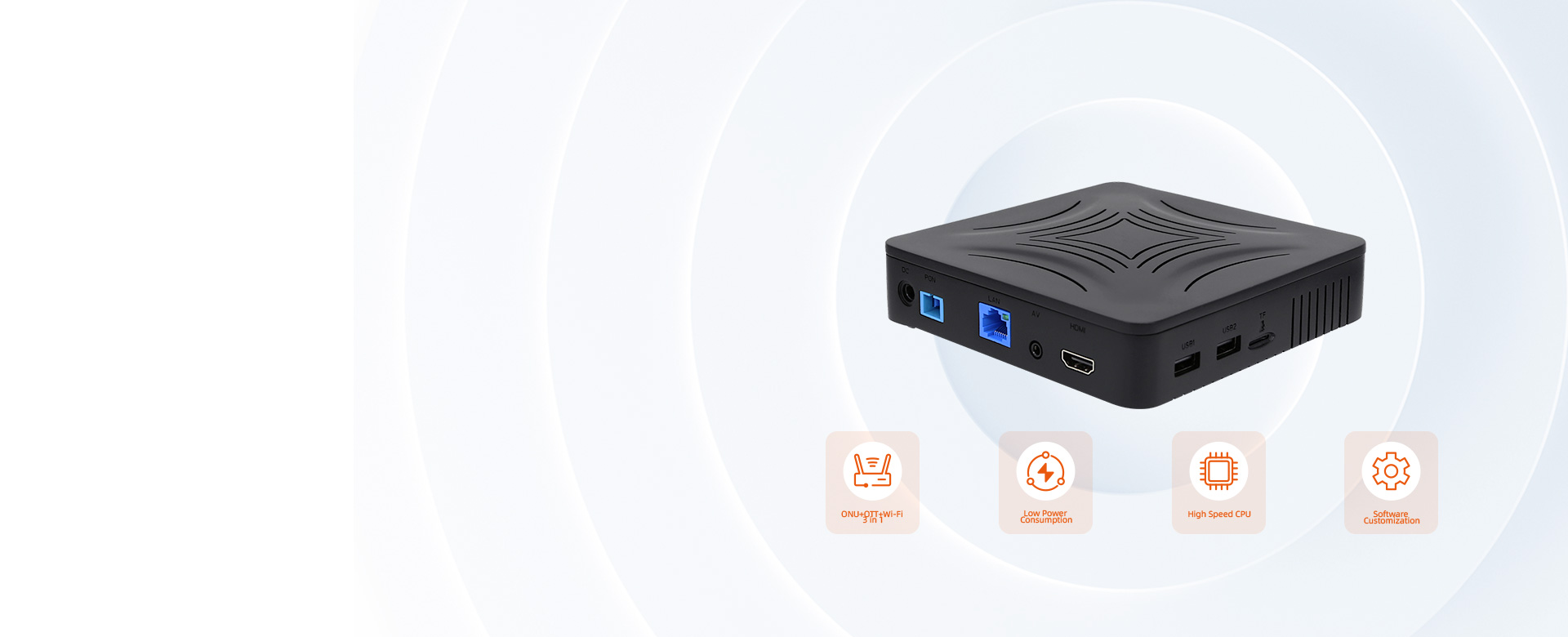

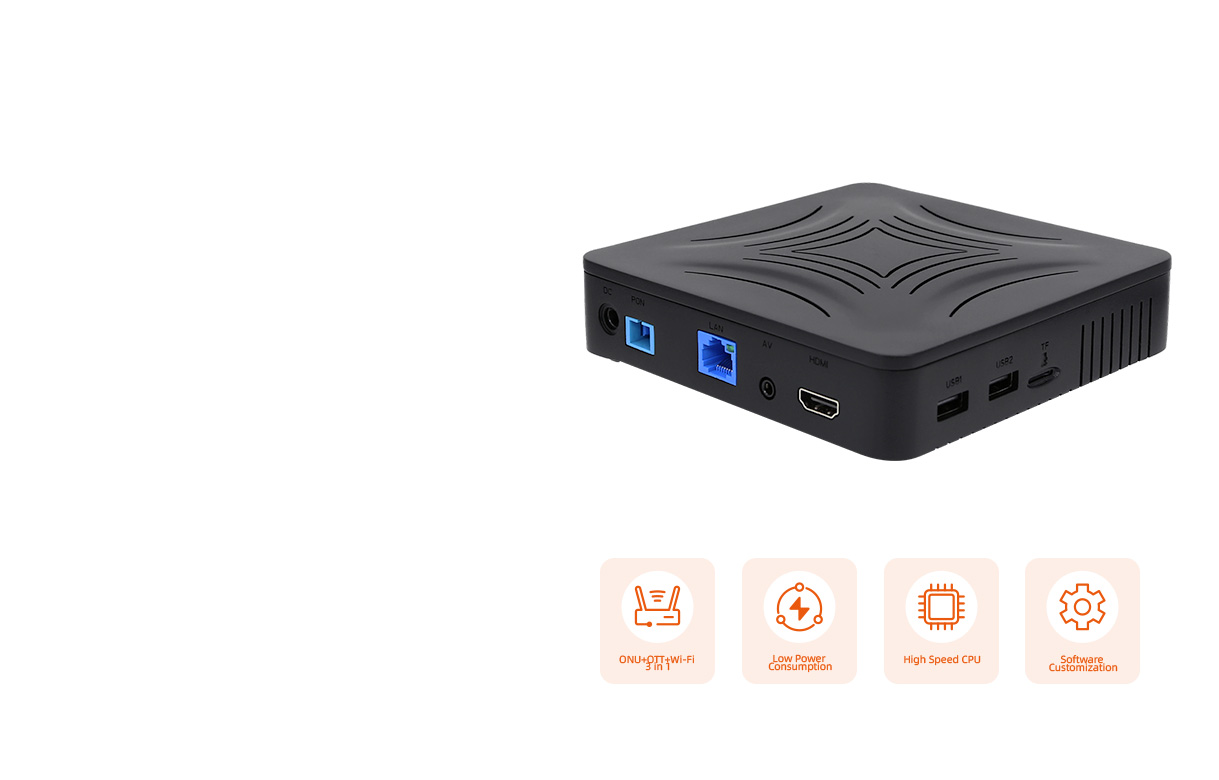

K21N300G10 is a second generation of FTTH type OTT+ONU+Wi-Fi three in one smart terminal developed by VIDEOSTRONG.  The ONU Part supports EPON and GPON two modes access The ONU automatically switches into the corresponding PON mode by  identifying the local OLT mode to complete GPON or EPON adaptive access. The OTT Part adopts Amlogic latest chipset (S905Y4), ultra-low power consumption, high cost performance. K21N300G10 can support live broadcast, VOD and broadband convergence services in one integrated equipment. lt provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Product specification
  • ONU

  • PON

    1*PON Type
    EPON&GPON mode adaptive;
    Network coverage radius 20KM;

  • GPON

    upstream 1.25Gbps /downstream 2.5Gbps

  • EPON

    upstream 1.25Gbps /downstream 1.25Gbps

  • LAN

    2*10/100/1000M Rj45

  • WIFI

    IEEE802.11b/g/n/ac

  • OTT

  • CPU

    Amlogic QUAD Core ARM Cortex - A35

  • DRAM

    2GB

  • ROM

    16GB

  • Ports

    1*HDMI; 1*AV; 2*USB; 1*SD Card; 1*DC IN

  • WIFI (2.4G + 5G)

  • Antenna gain

    3dBi.

  • Max TX power

    2.4G 17dBm

  • Features

    Full IEEE 802.11b/g legacy compatibility with enhanced performance.
    Two-stream spatial multiplexing up to 300Mbps PHY data rates.
    Support multi-SSID.
    Support automatic channel selection.
    Support hide SSID.
    Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2.
