K21AC1200G20 | OTT+ONU+WiFi Smart Terminal

EN: CN

 sales@videostrong.com

Products details





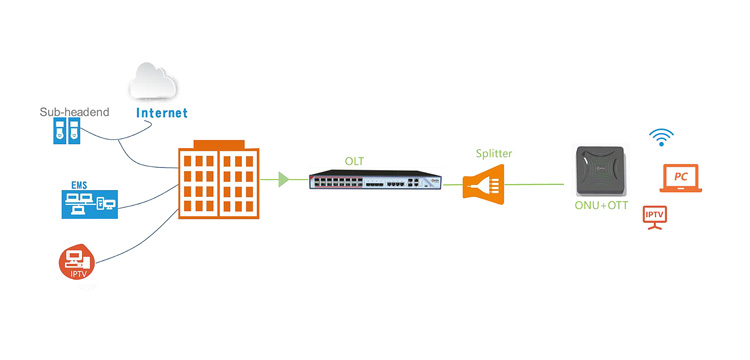

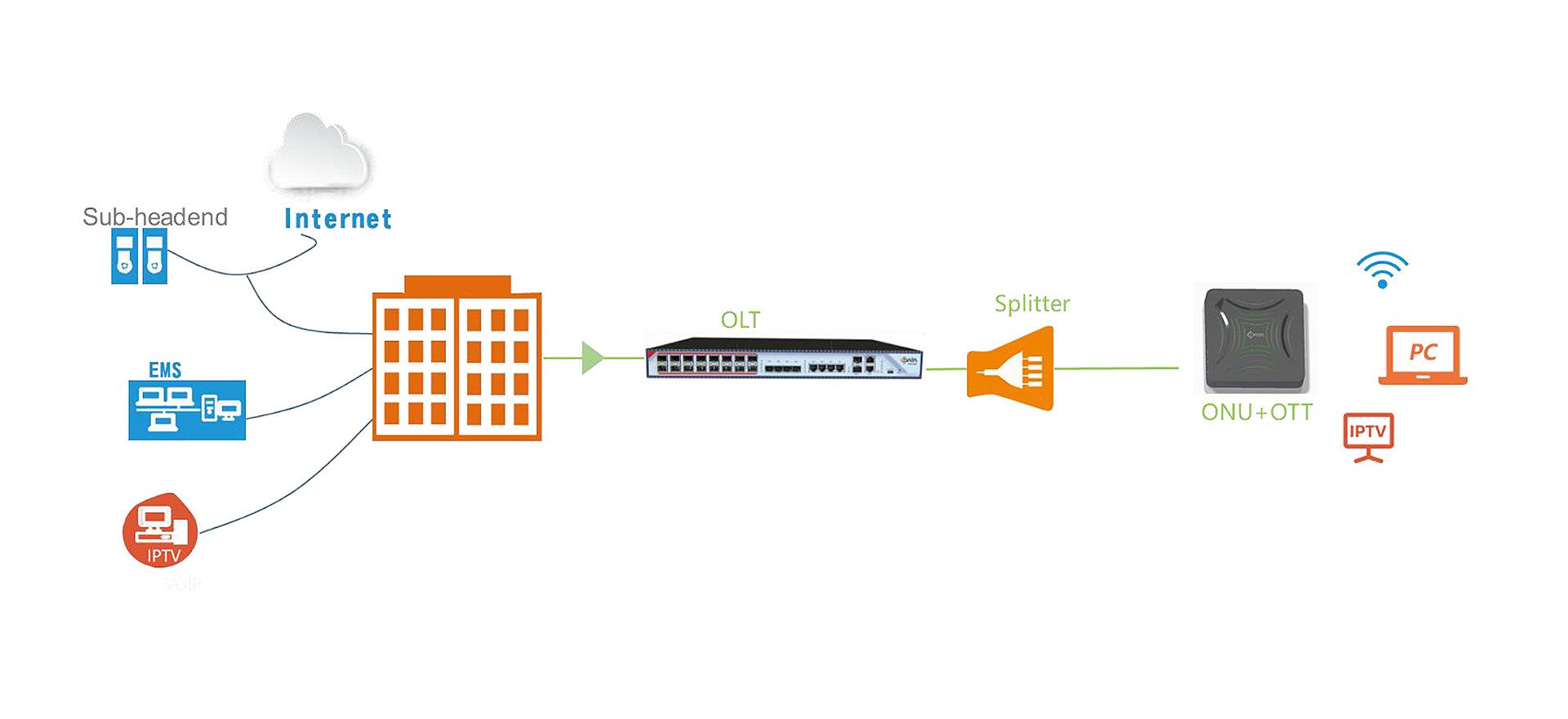

OTT+ONU+WiFi Network Application

OTT+ONU+WiFi Network Application

Network Application

Typical Solution: FTTH
Typical Business: Internet, IPTV, VoD, Wi-Fi

Network Application

Typical Solution: FTTH
Typical Business: Internet, IPTV, VoD, Wi-Fi

K21AC1200G20 is a second generation of FTTH type OTT+ONU+Wi-Fi three in one smart terminal developed by VIDEOSTRONG. The ONU Part supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access. The OTT Part adopts Amlogic latest chipset (S905Y4), ultra- low power consumption, high cost performance. K21AC1200G20 can support live broadcast, VOD and broadband convergence services in one integrated equipment. It provides a perfect terminal solution and future- oriented service supporting capabilities for FTTH deployment.

Product specification

ONU
PON
1*PON Type
EPON&GPON mode adaptive;
Network coverage radius 20KM;
GPON
upstream 1.25Gbps /downstream 2.5Gbps
EPON
upstream 1.25Gbps /downstream 1.25Gbps
LAN
2*10/100/1000M Rj45
WIFI
IEEE802.11b/g/n/ac
OTT
CPU
Amlogic QUAD Core ARM Cortex - A35
DRAM
2GB
ROM
16GB
Ports
1*HDMI; 1*AV; 2*USB; 1*SD Card; 1*DC IN
WIFI (2.4G + 5G)
Antenna gain
3dBi
Max TX power
17dBm
Features
Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
