4G module
4G module
.

.

4G – EC20

4G – EC20 has built-in rich network protocols, integrated multiple industry standard interfaces, multiple operating systems and software functions (USB driver for Windows XP/Windows Vista/Windows7/Windows 8/8.1/Windows 10/Linux/Android system) , which greatly expands its application scope in the field of M2M, such as central processing units, routers, data cards, tablet computers, vehicles, security and industrial PDA fields.

4G – EC20

4G – EC20 has built-in rich network protocols, integrated multiple industry standard interfaces, multiple operating systems and software functions (USB driver for Windows XP/Windows Vista/Windows7/Windows 8/8.1/Windows 10/Linux/Android system) , which greatly expands its application scope in the field of M2M, such as central processing units, routers, data cards, tablet computers, vehicles, security and industrial PDA fields.

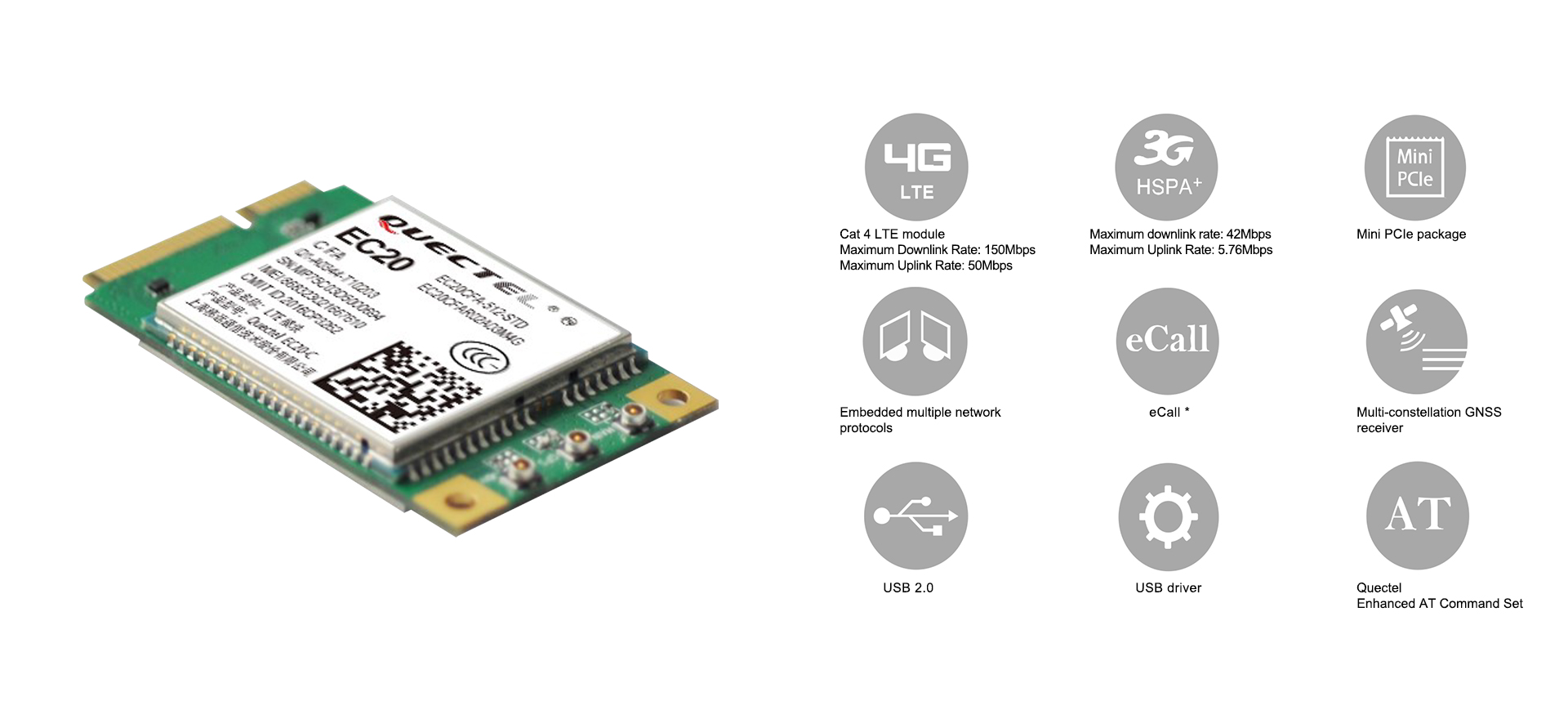

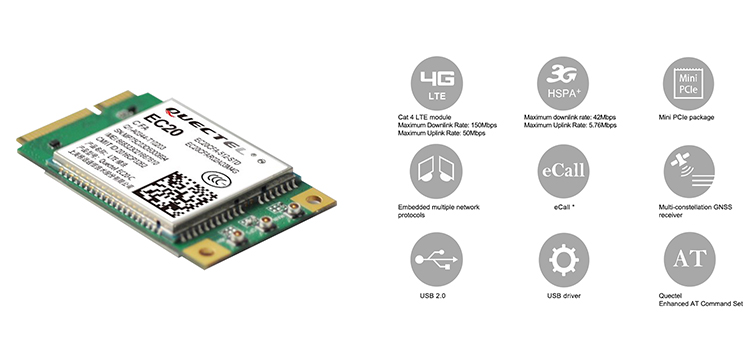

1. Comprehensive coverage of all network formats.

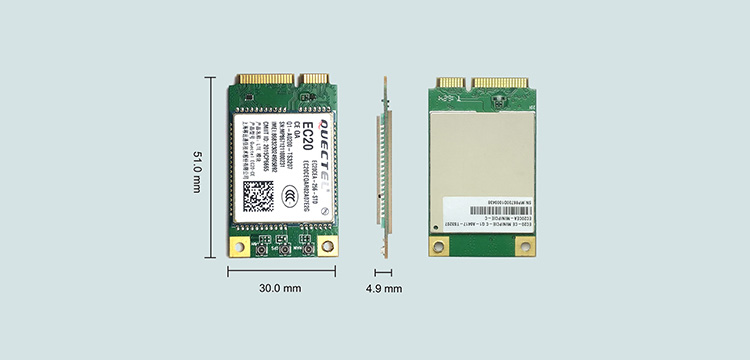

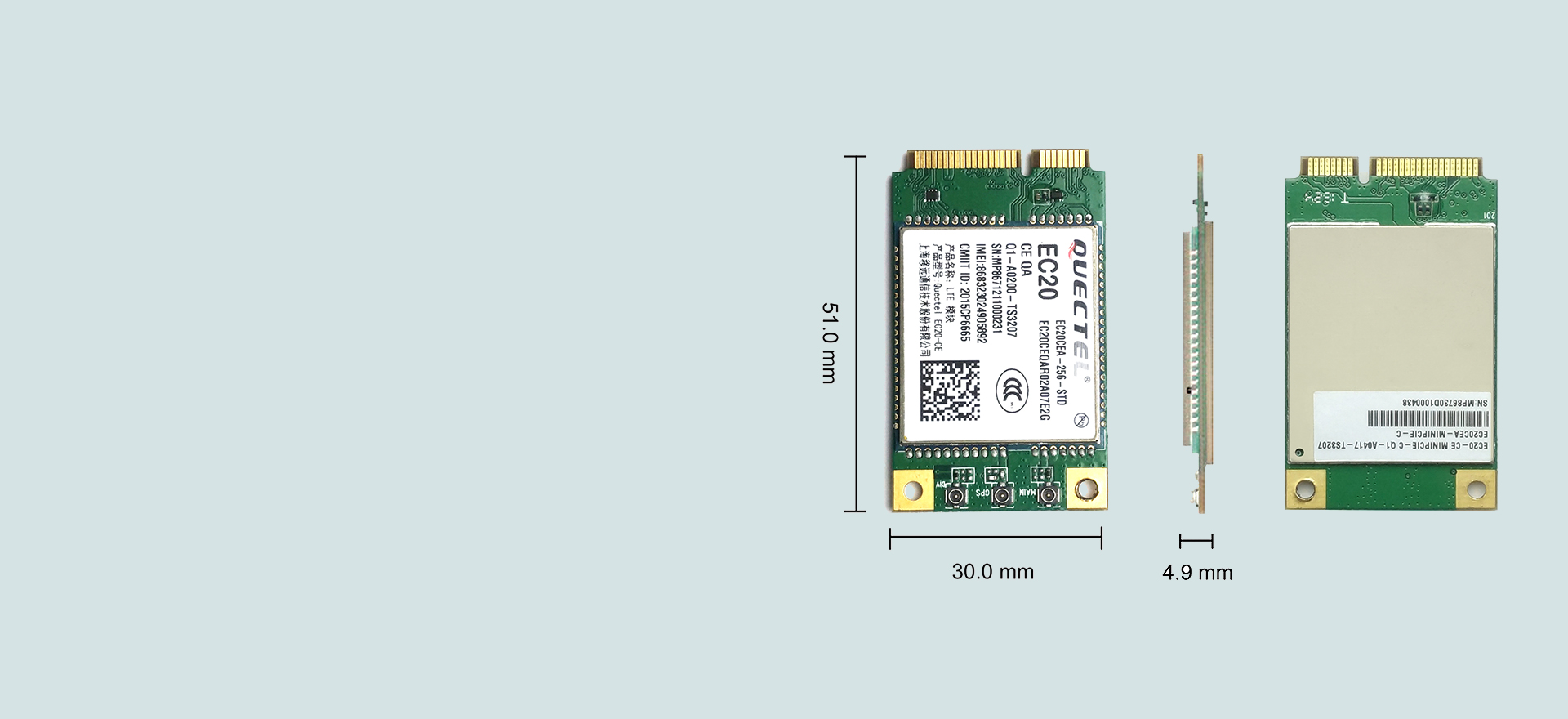

2. The standard Mini PCIe package module provides maximum convenience for customers to design and use.

3. MIMO technology meets the reliability requirements of wireless communication systems for data rates and connections.

4. The highly integrated multi-constellation GNSS receiver provides fast and accurate positioning.

5. Easily achieve a smooth transition from 3G to 4G network.


Product specification
  • LTE-FDD

    Max 150Mbps (DL) Max 50Mbps (UL)

  • LTE-TDD

    Max 130Mbps (DL) Max 35Mbps (UL)

  • DC-HSPA+

    Max 42Mbps (DL) Max 5.76Mbps (UL)

  • UMTS

    Max 384Kbps (DL) Max 384Kbps (UL)

  • TD-SCDMA

    Max 4.2Mbps (DL) Max 2.2Mbps (UL)

  • CDMA

    Max 3.1Mbps (DL) Max 1.8Mbps (UL)

  • EDGE

    Max 236.8Kbps (DL) Max 236.8Kbps (UL)

  • GPRS

    Max 85.6Kbps (DL) Max 85.6Kbps (UL)

  • Voice codec

    HR, FR, EFR, AMR, AMR-WB

  • Echo Mechanism

    Echo Cancellation
    noise suppression

  • eCall*

    Vehicle Accident Emergency Service

  • VoLTE

    Digital Voice and VoLTE (Voice over LTE) (optional)

  • Protocol stack

    TCP/ UDP/ PPP/ FTP/ HTTP/ NTP/ PING/ QMI/
    NITZ/ CMUX/ HTTPS*/ SMTP*/ MMS*/ FTPS*/
    SMTPS*/SSL*/FILE
