Amlogic S905X4-B Quad core ARM Cortex-A55 CPU

ARM-G31 MP2 GPU

2GB

16GB

Built-in 2.4G/5G 2T2R with IEEE 802.11 b/g/n/ac

4.2

10/100M

Power ON :blue; Standby :Red

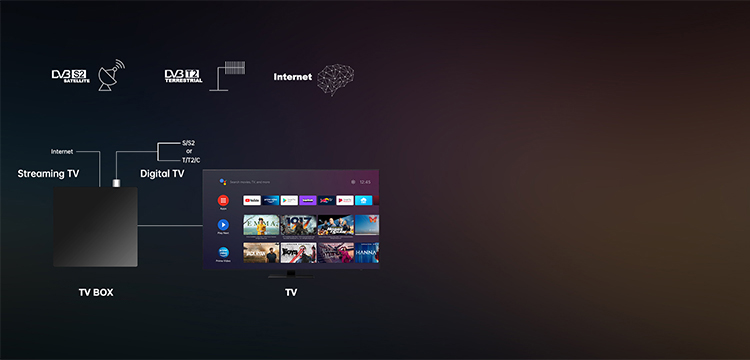

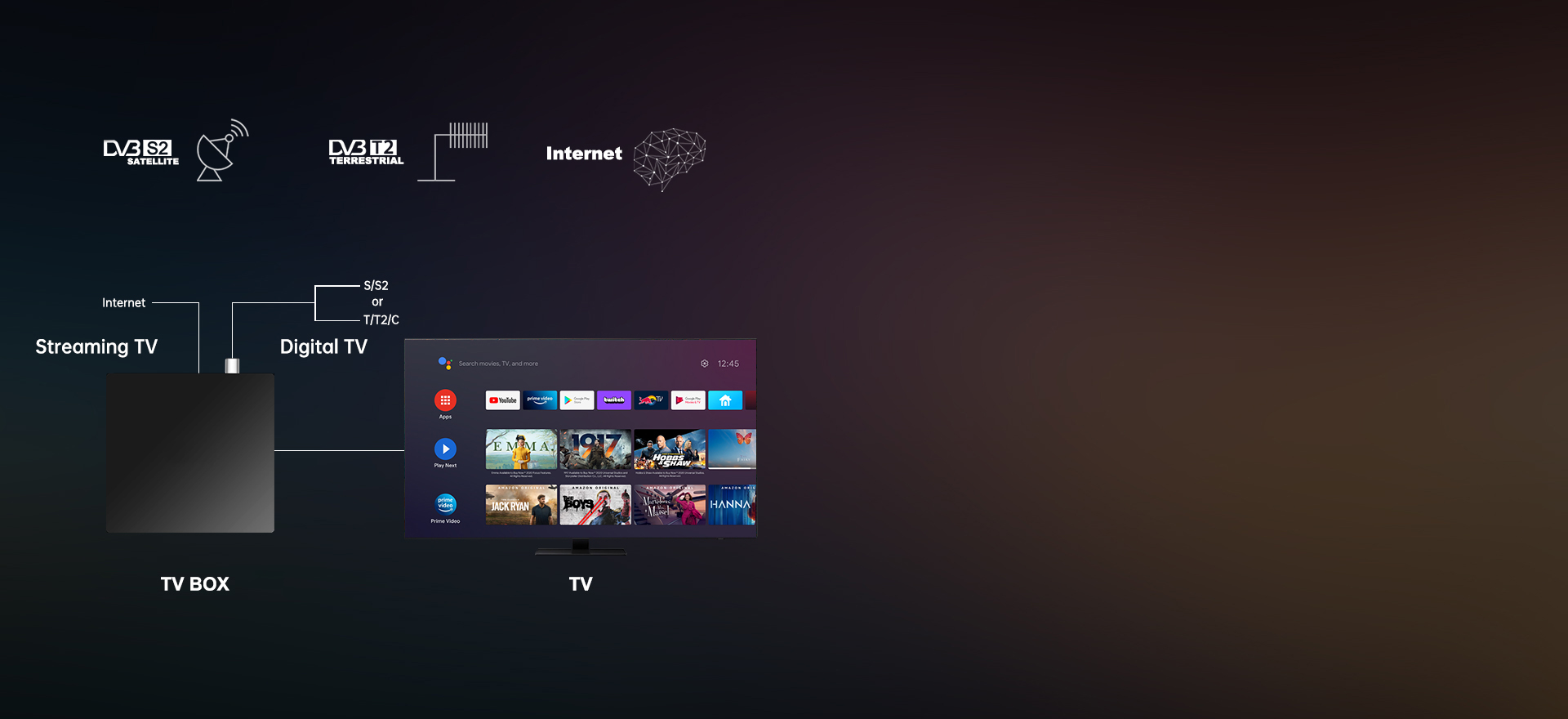

Support DVB-T/T2/C

Android 10.0 ATV

hardware decoders -AV1 MP-10@L5.1 up to 4Kx2K@60fps
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@L5.1 up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps

Video/Picture Encoding
- Independent JPEG and H.264 encoder with configurable performance/bit-rate
- JPEG image encoding
- H.265/H.264 video encoding up to 1080P@60fps with low latency

Supports HDR10+, HDR10, HLG, and Technicolor HDR processing

ARM-G31 MP2 GPU
- 4-wide warps, dual texture pipe, 2x 4-wide execution engines (EE)
- Concurrent multi-core processing
- OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support

HD MPEG1/2/4,H.265/H.264/HEVC , WMV ,AV1 MP-10,VP9 Profile-2,HD AVC/VC-1,RM/RMVB,Xvid,RealVideo8/9/10

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Supports MP3, AAC, WMA, RM, FLAC, and Ogg and is programmable with 7.1/5.1 down-mixing

HD JPEG/BMP/GIF/PNG/TIFF

Chormecas,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.

Chinese , English ,Germany , Japanese, Korea, etc. 24 languages

Support OTA update

1* HDTV 2.1 Dynamic HDR 4Kx2K@60 max resolution output
1* USB 2.0
1* USB 3.0
1*AV CVBS&L/R output
1* TF CARD
1* RJ45 LAN
1* DC 5V/2A
