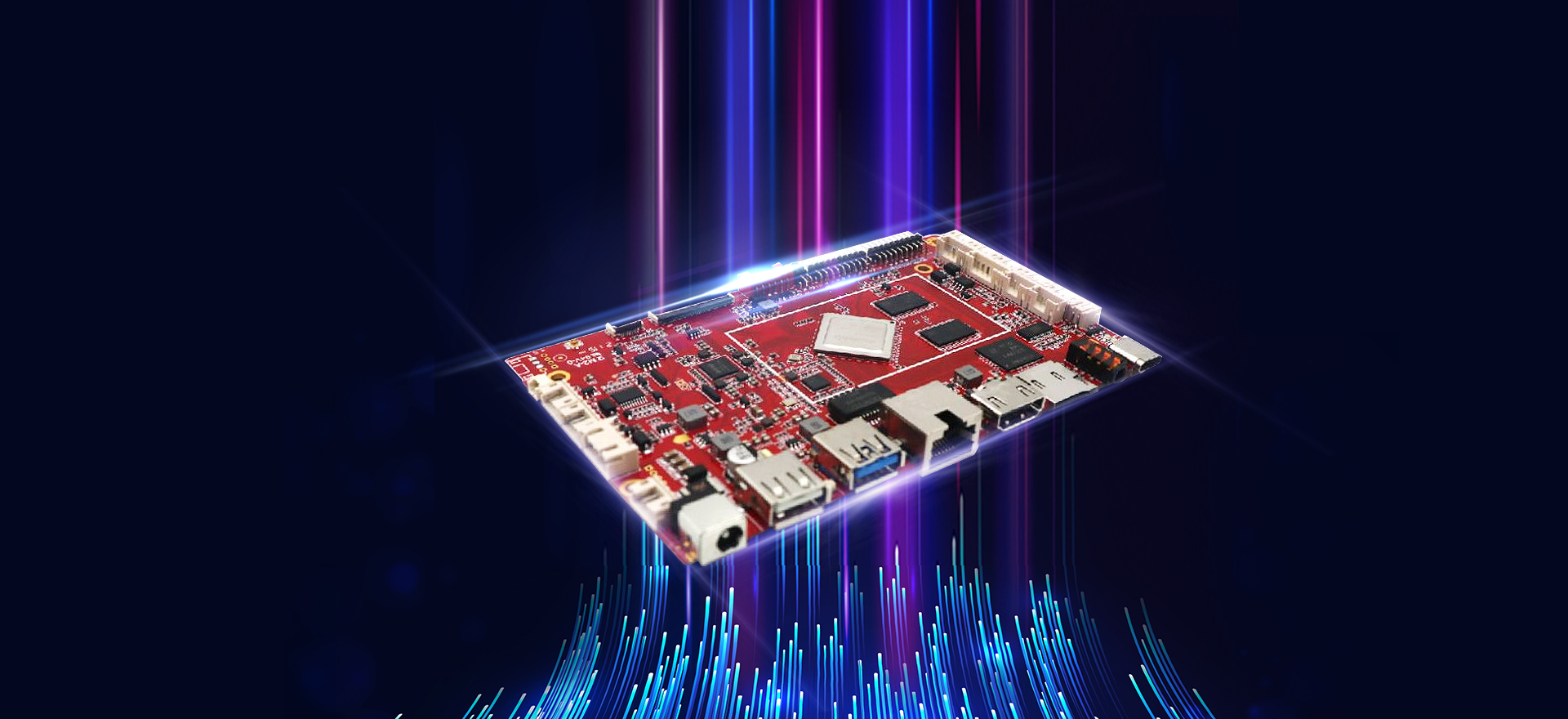

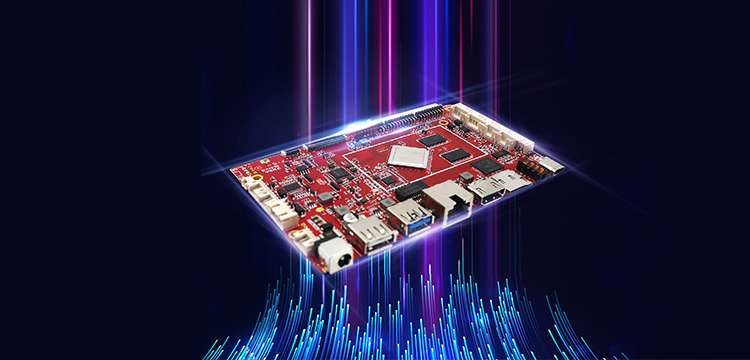

RK3568 Development Board
RK3568 Development Board
High Performance Processor

Chip: Amlogic A311D2
OS: Android
Main frequency: 2.0GHz
CPU: Quad-core 64-bit Cortex-A55
GPU: ARM G52 2EE
Video decoding: support 4K 60fps H.265/H.264/VP9 video decoding

High Performance Processor

Chip: Amlogic A311D2
OS: Android
Main frequency: 2.0GHz
CPU: Quad-core 64-bit Cortex-A55
GPU: ARM G52 2EE
Video decoding: support 4K 60fps H.265/H.264/VP9 video decoding

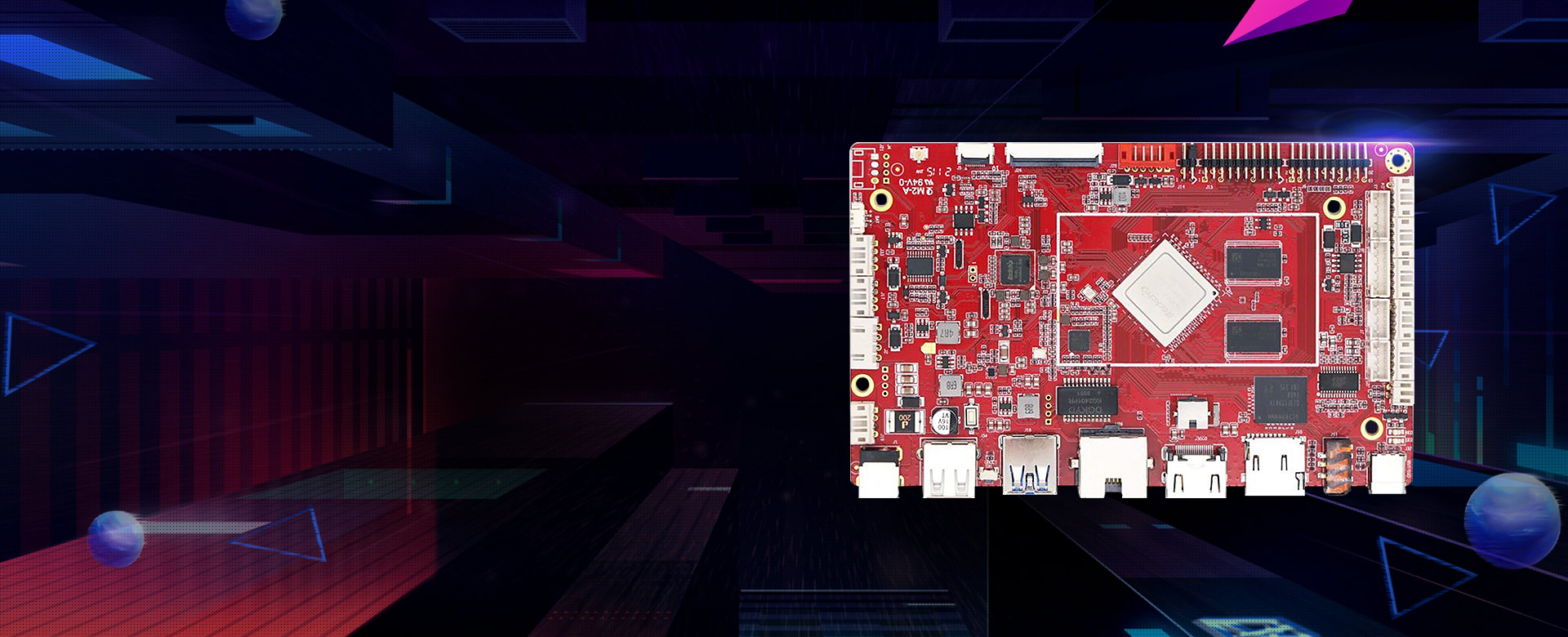

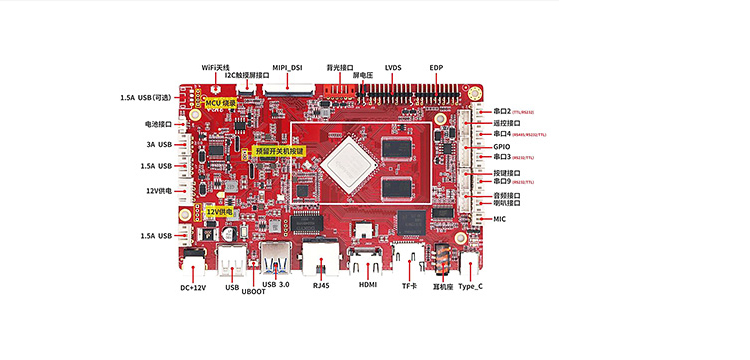

Rich Expansion Interface

1*Type_C, 5*USB2.0, 1*USB3.0
Serial port optional TTL/RS232/RS485
GPIO/ADC/MIC/IIC interface
MIPI/HDMI/EDP/VDS point screen interface

Rich Expansion Interface

1*Type_C, 5*USB2.0, 1*USB3.0
Serial port optional TTL/RS232/RS485
GPIO/ADC/MIC/IIC interface
MIPI/HDMI/EDP/VDS point screen interface

Support Dual Camera

With MIPI-CSIx2, MIPI-DSIx2, HDMI2.0, EDP video interface, support dual-screen different display; built-in 8M ISP image signal processor, can support binocular camera and HDR function; video input interface can be connected to an external camera or used for expansion Multi-channel camera input function; suitable for NVR surveillance video recorders, information distribution terminals, multimedia advertising machines and other product application scenarios.

Support Dual Camera

With MIPI-CSIx2, MIPI-DSIx2, HDMI2.0, EDP video interface, support dual-screen different display; built-in 8M ISP image signal processor, can support binocular camera and HDR function; video input interface can be connected to an external camera or used for expansion Multi-channel camera input function; suitable for NVR surveillance video recorders, information distribution terminals, multimedia advertising machines and other product application scenarios.

High-definition Display, Clear Picture

Adopt Mali-G52 system GPU chip, ARM buffer compression, low memory bandwidth to enjoy high picture quality.

High-definition Display, Clear Picture

Adopt Mali-G52 system GPU chip, ARM buffer compression, low memory bandwidth to enjoy high picture quality.

Gigabit Network One Step Ahead

Gigabit Ethernet
larger transfer volume
Improve network stability
lower processor usage

Gigabit Network One Step Ahead

Gigabit Ethernet
larger transfer volume
Improve network stability
lower processor usage

Application Scenarios

Smart Home, Smart Education, Smart Projection, Smart Vehicle, KTV, Internet of Things, Smart Network Videophone, POS Machine, Digital Signage Hardware Platform, Hotel Smart Interactive TV, IPTV/DVB OTT Integration, Remote Smart Display System.

Application Scenarios

Smart Home, Smart Education, Smart Projection, Smart Vehicle, KTV, Internet of Things, Smart Network Videophone, POS Machine, Digital Signage Hardware Platform, Hotel Smart Interactive TV, IPTV/DVB OTT Integration, Remote Smart Display System.

Product specification
  • CPU

    Quad-core 64-bit Cortex-A55, main frequency up to 2.0GHz

  • GPU

    ARM G52 2EE
    Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
    Embedded high-performance 2D acceleration hardware

  • NPU

    support 0.8T computing power

  • Multimedia

    Support 4K 60fps H.265/H.264/VP9 video decoding
    Support 1080P 100fps H.265/H.264 video encoding
    Support 8M ISP, support HDR

  • Display

    support dual-screen display
    Support eDp/HDMI2.0/MIPI/LVDS/24bit RGB/T-CON

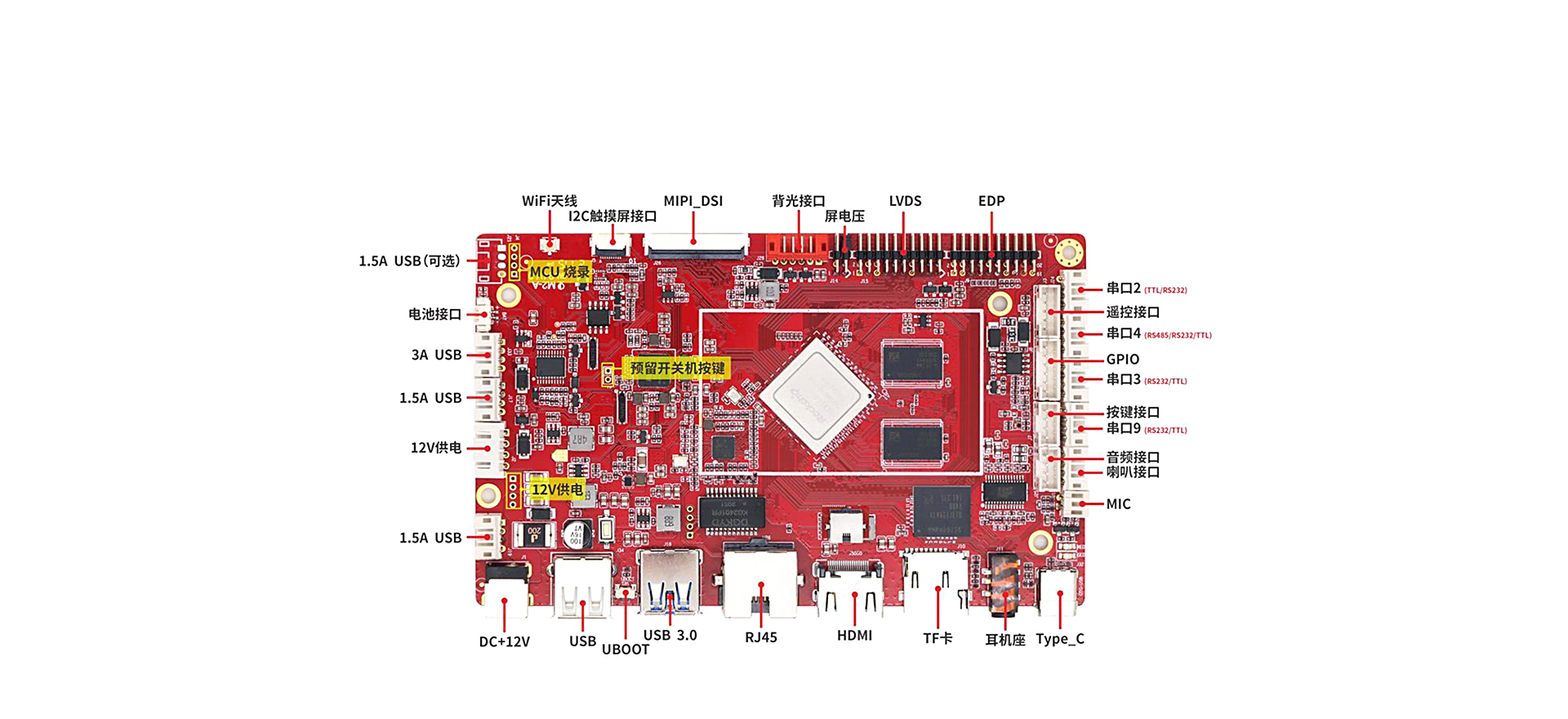

  • Peripheral interface

    support 1000M/100M adaptive Ethernet
    Support WIFI-2.4G, BT-4.1
    5 USB 2.0 (one of which is optional) and 1 USB 3.0, 1 Type_C port
    4 serial ports (TTL/RS232/RS485 optional)
    1 I2C touch screen interface
    4 general-purpose GPIO ports
    MIPI-DSI-40PIN-FPC supports up to 1200*1920 output
    HDMI2.0 supports up to 4K@60HZ output
    EDP supports up to 1920X1080 output
    1 single eight LVDS+ backlight interface supports up to 1366x768 output
    MIPI-CSI-30PIN-FPC
    1, remote control 1, red light 1, green light
    Support speaker interface, up to two 8Ω 5W, dual-channel speaker output
    Support one MIC interface, one earphone, one audio
