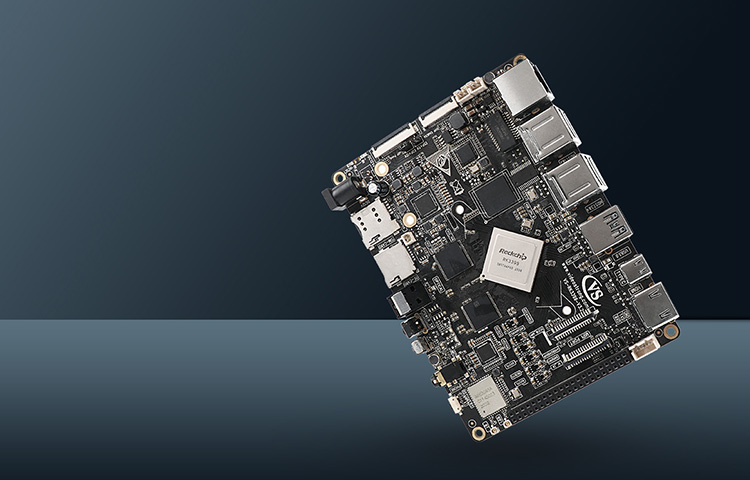

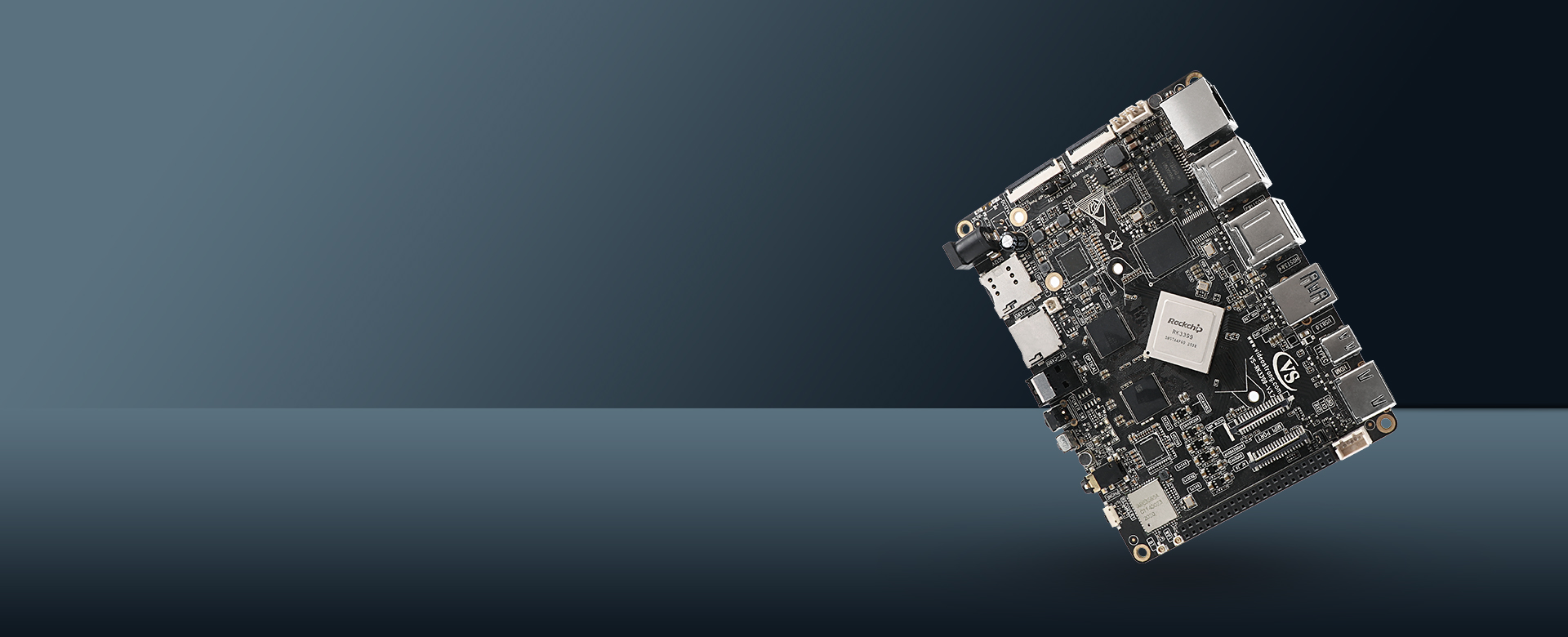

VS-3399 Development Board
VS-3399 Development Board
VS-3399 RK3399VS-3399 RK3399
Six-core 64-bit "server-grade" Cortex-A72 Processor

Using dual "server-grade" core Cortex-A72 + quad-core Cortex-A53 large and small core architecture, the frequency is up to 2.0GHZ, the new core can provide up to 100% performance improvement compared to the previous Cortex-A15/A17 core design.

Six-core 64-bit "server-grade" Cortex-A72 Processor

Using dual "server-grade" core Cortex-A72 + quad-core Cortex-A53 large and small core architecture, the frequency is up to 2.0GHZ, the new core can provide up to 100% performance improvement compared to the previous Cortex-A15/A17 core design.

VS-3399 RK3399 Dual MIPI CamerasVS-3399 RK3399 Dual MIPI Cameras
Dual MIPI Cameras with Simultaneous Display

It has dual MIPI-CSI interfaces, supports processing image effects up to 800MPix/S, two-channel simultaneous display of 13 million cameras; supports dual-screen simultaneous display/dual-screen different display.

Dual MIPI Cameras with Simultaneous Display

It has dual MIPI-CSI interfaces, supports processing image effects up to 800MPix/S, two-channel simultaneous display of 13 million cameras; supports dual-screen simultaneous display/dual-screen different display.

VS-3399 RK3399 Mali-T860VS-3399 RK3399 Mali-T860
Mali-T860MP4 Quad-core Graphics Processor

Mali-T860 GPU, OpenGL ES1.1 / 2.0 / 3.0 / 3.1, OpenVG1.1, OpenCL, DX11, 50% higher performance than the previous generation Mali-T628.
The GPU can be used in many practical applications such as computer vision, machine learning, and 4K 3D rendering, and the integrated hardware decoding can support VP9, H.264 encoding, and 4K HDR.

Mali-T860MP4 Quad-core Graphics Processor

Mali-T860 GPU, OpenGL ES1.1 / 2.0 / 3.0 / 3.1, OpenVG1.1, OpenCL, DX11, 50% higher performance than the previous generation Mali-T628.
The GPU can be used in many practical applications such as computer vision, machine learning, and 4K 3D rendering, and the integrated hardware decoding can support VP9, H.264 encoding, and 4K HDR.

VS-3399 RK3399VS-3399 RK3399

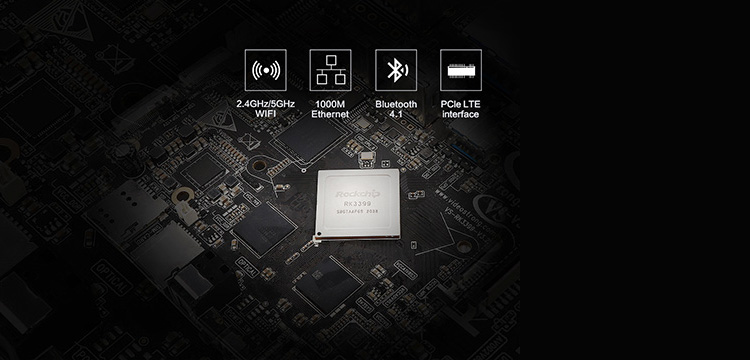

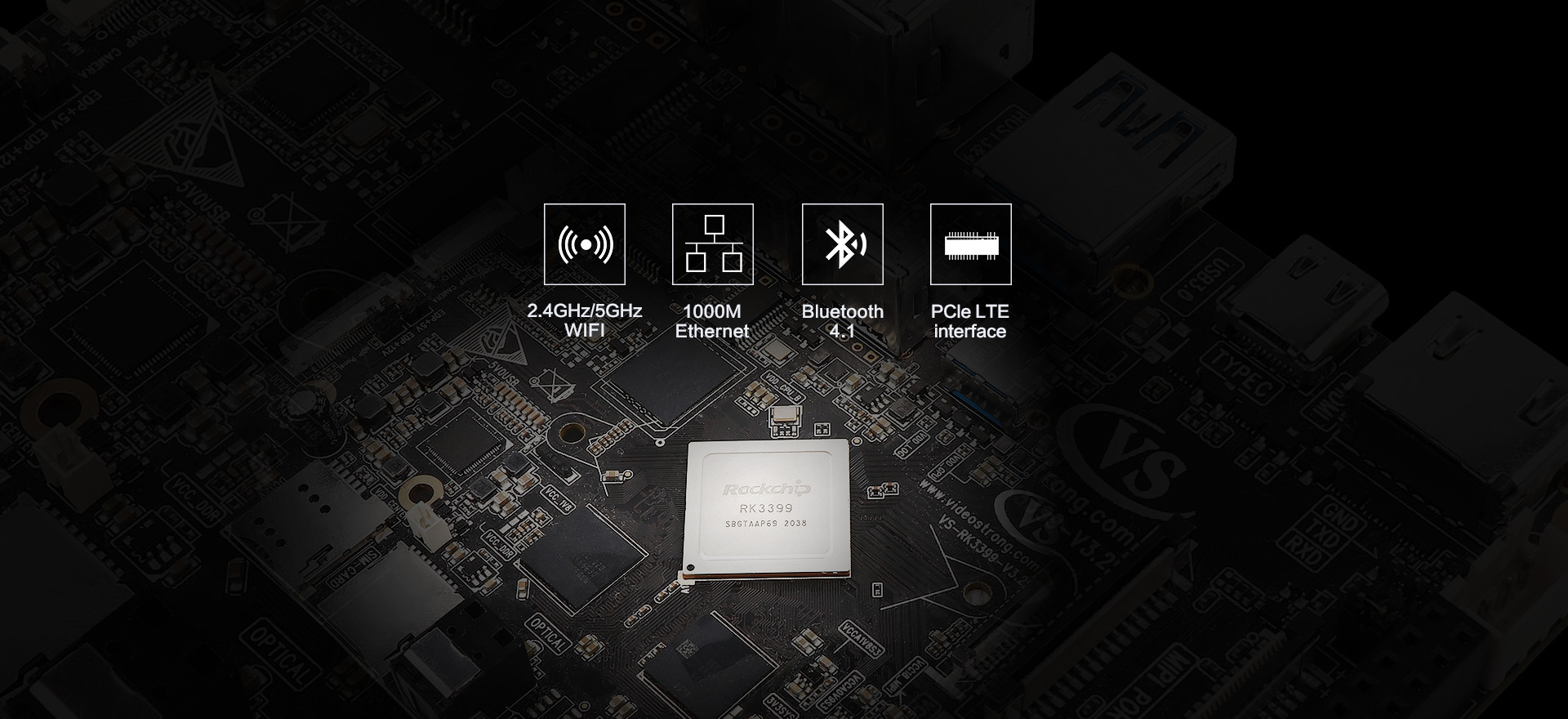

Strong Network Support

Strong Network Support

VS-3399 RK3399 InterfacesVS-3399 RK3399 Interfaces

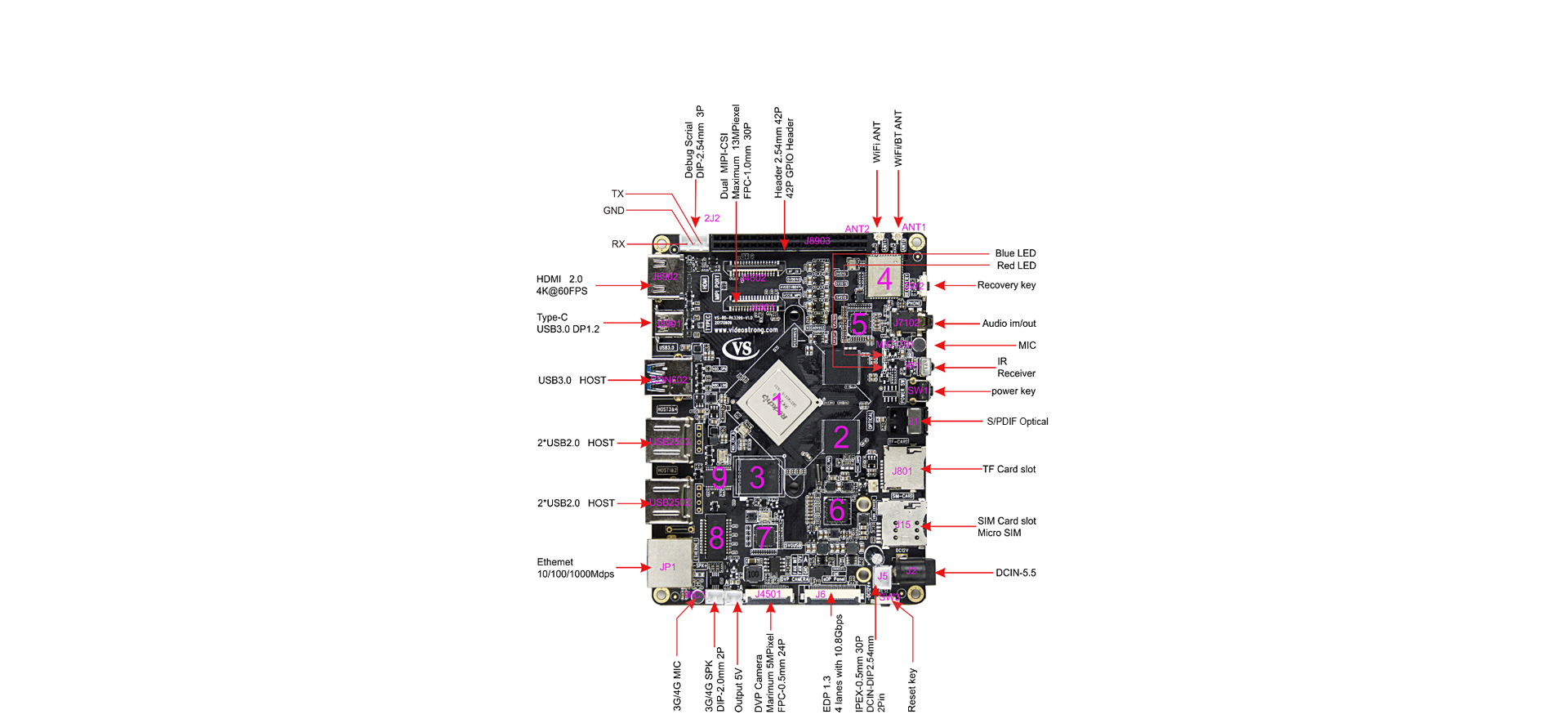

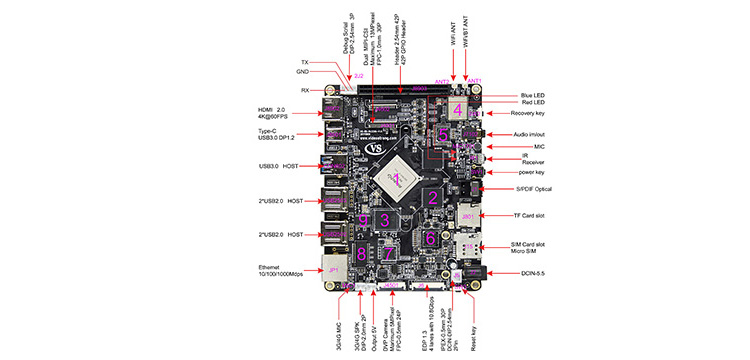

Rich Expansion Interfaces, High flexibility to customize solutions

Rich Expansion Interfaces, High flexibility to customize solutions

VS-3399 Application ScenariosVS-3399 Application Scenarios
Wide Application Scenarios

Intelligent home, intelligent education, intelligent projection, intelligent vehicle, KTV, Internet of Things, remote intelligent display system, intelligent network video phone, POS machine, digital signage hardware platform, hotel intelligent interactive TV, IPTV/DVB OTT integration.

Wide Application Scenarios

Intelligent home, intelligent education, intelligent projection, intelligent vehicle, KTV, Internet of Things, remote intelligent display system, intelligent network video phone, POS machine, digital signage hardware platform, hotel intelligent interactive TV, IPTV/DVB OTT integration.

1. Multi-channel display interface: support MIPI, HDMI, EDP, DP multiple display output interfaces. It can support dual-screen simultaneous display/dual-screen different display.

2. High-performance peripheral interfaces: 2 USB3.0 interfaces, 4 USB2.0, earphones, infrared remote control.

3. Various network interfaces: 2.4GHz/5GHz dual-band WIFI, Bluetooth4.1, Gigabit Ethernet, onboard Mini PCIe interface to expand 3G/4G communication module.

4. Dual MIPI camera interface, maximum support 13 million pixels.

5.DVP camera interface, maximum support 5 million pixels.

6.TF card, optical fiber interface.

7. RTC interface.

8.42-pin rich external development interface.


Product specification
  • CPU

    6-core ARM® 64-bit, up to 1.8GHz
    A72 large core + quad-core Cortex-A53 small core architecture, 64-bit CPU

  • GPU

    Mali-T860 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

  • DDR

    Dual channel 1866 / LPDDR3 (up to 4G)

  • Storage

    High-speed eMMC 16G/32G (optional), support eMMC 5.1 with HS400, SDIO 3.0 with HS200

  • PMU management

    RK808 PMU chip

  • Video decoding

    4K VP9 and 4K 10bits H264 video decoder, up to 60fps, 1080P other video decoder
    (VC-1, MPEG-1/2/4, VP8) 1080P video encoder for H.264 and VP8, video post processor:
    De-interlace, de-noise, enhance edge/detail/color

  • Audio format

    Support MP3/AAC/WAV/WMA/DTS-HD/LPCM/H264/VP8/MVC

  • Video Format

    Support RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,et

  • Photo Format

    Support JPG/BMP/GIF/TIFF/PNG

  • Display resolution

    up to 3840X2160 resolution, and supports HDMI2.0

  • OS

    Android 7.1

  • Ethernet

    10/100/1000Mbps Ethernet (Realtek RTL8211E)

  • Wireless network

    2.4GHz/5GH dual-band WiFi support ac protocol, Bluetooth 4.1 802.11a/b/g/n/

  • 4G module

    PCIe port, PCIe socket height 7mm

  • SIM

    1 x SIM slot for Mini PCIe expansion LTE module

  • Display

    Dual VOP Display
    1 x HDMI 2.0 (Type-A), up to 4K @ 60fps
    1 x DP 1.2 (DisplayPort), 4 lines up to 4K @ 60fps
    1 x eDP 1.3 (4 lanes, 10.8Gbps)
    1 x MIPI, 4-line support 2560x1600 @ 60fps

  • Audio

    1 x HDMI or 1 DP (DispalyPort), audio out
    1 x Headphone Audio Out
    1 x LINEOUT audio output
    1 x speaker, 3G/4G communication speaker output, 1.8W8Ω/ 3.1W4Ω (optional)
    2 x Speaker Ports, Speaker Out (1.5W8Ω/ 2.5W4Ω)
    1 x SPDIF digital audio port for audio output
    1 x microphone, onboard audio input
    1 x I2S port, supports 8 lanes

  • USB Ports

    4x USB2.0 HOST, 1x USB3.0 HOST, 1x USB3.0 Type-C

  • TF card

    1 x TF card

  • Serial port

    1 x debug serial port (3pin 2.54mm DIP socket) for development and debugging

  • Camera Ports

    2 x MIPI-CSI camera ports (up to single 13M pixels or dual 8M pixels
    1 x DVP camera port (up to 5 megapixels)

  • PCIe Port

    1 x Mini PCIe for LTE

  • Touch Screen Port

    1 X Support I2C Touch

  • LED

    1 x Power Status LED (Red), 1 x User Defined LED (Blue)

  • IR remote control head

    1 x IR receiver, support IR remote control

  • RTC port

    1 x RTC clock battery (2P/1.25mm pitch)

  • Buttons

    1 x reset, 1 x power, 1 x recovery

  • Power supply

    1 x DC12V - 2A (DC 5.5 * 2.1mm)
    1 x 2pin 2.54mm DIP socket

  • External Development Port

    42pin 2.54mm Pins
    1 x SPI/UART, 2 x GPIO, 1 x LINEOUT, 2 x SPEAKER

  • System upgrade

    USB upgrade, TF upgrade

  • Size

    127*95.5mm
