Strong Network Support

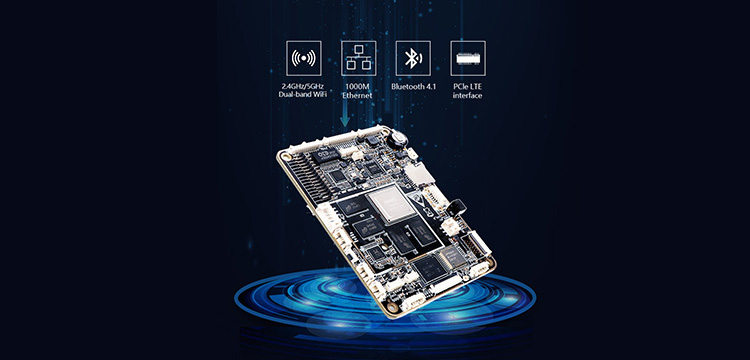

VS-MINI3288 supports 2.4GHz/5GHz dual-band WIFI, Bluetooth4.1 and Gigabit Ethernet.

Strong Network Support

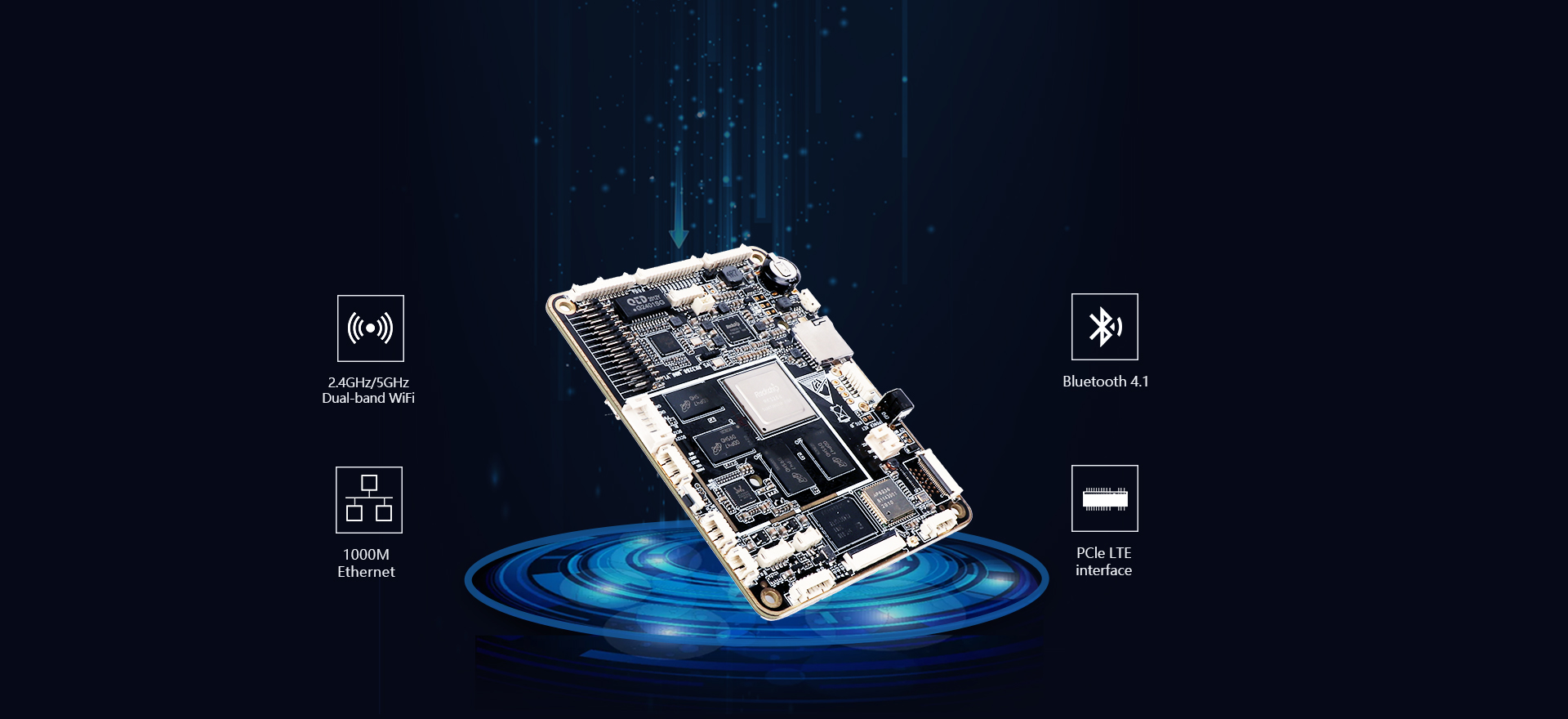

VS-MINI3288 supports 2.4GHz/5GHz dual-band WIFI, Bluetooth4.1 and Gigabit Ethernet.

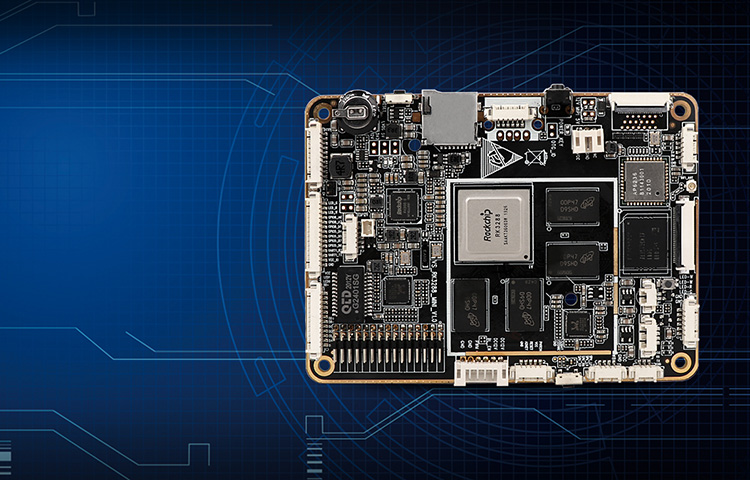

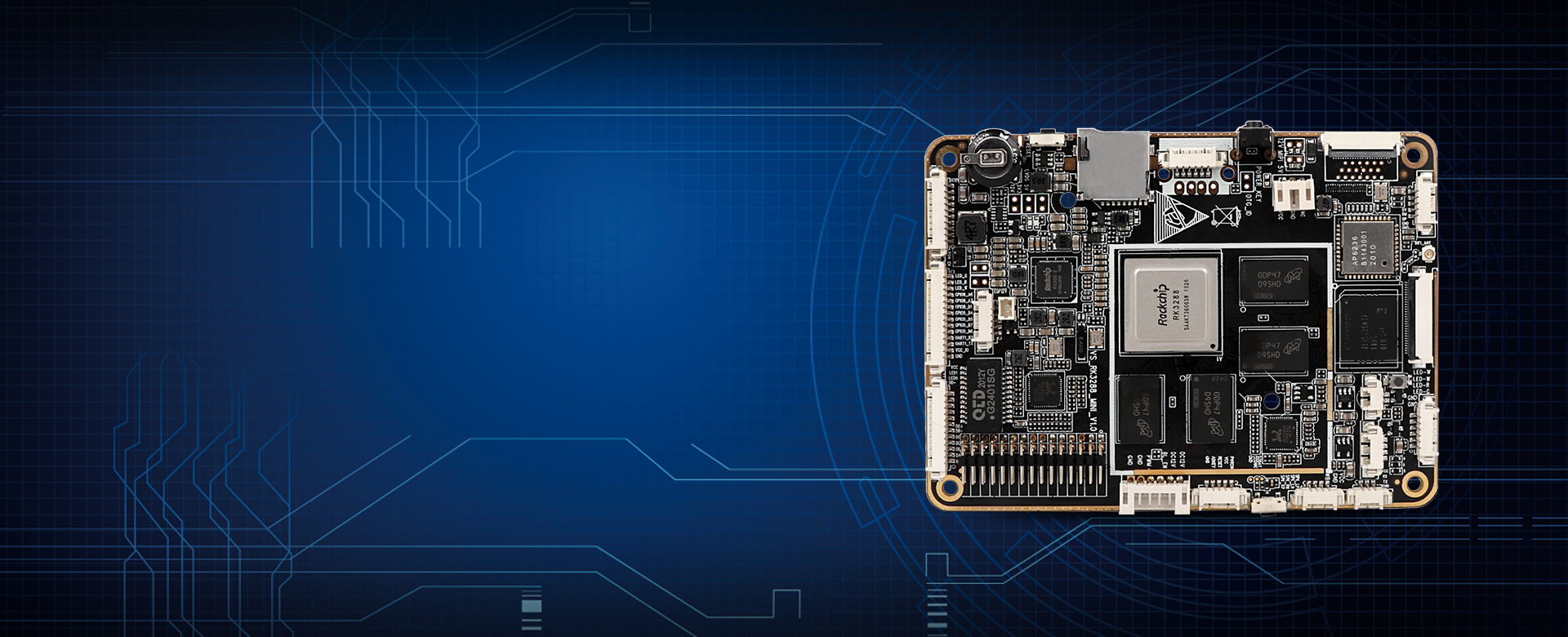

Powerful Peripheral Interface

VS-MINI3288 smart motherboard has four high-performance display interfaces HDMI2.0, DP1.2 (DisplayPort), MIPI-DSI, EDP and other display interfaces. In addition to powerful display performance, it can also achieve dual-screen display. In the display field, the advantages are also very obvious.

Powerful Peripheral Interface

Quad-core 32-bit "server-grade" Cortex-A17 Processor

CPU: ARM® Cortex™-A17, GPU: Mali-T764 GPU, Video decoding: support 4K 10bits VP9/H265/H264 video decoding

Quad-core 32-bit "server-grade" Cortex-A17 Processor

CPU: ARM® Cortex™-A17, GPU: Mali-T764 GPU, Video decoding: support 4K 10bits VP9/H265/H264 video decoding

Mali-T764GPU Quad-core Graphics Processor

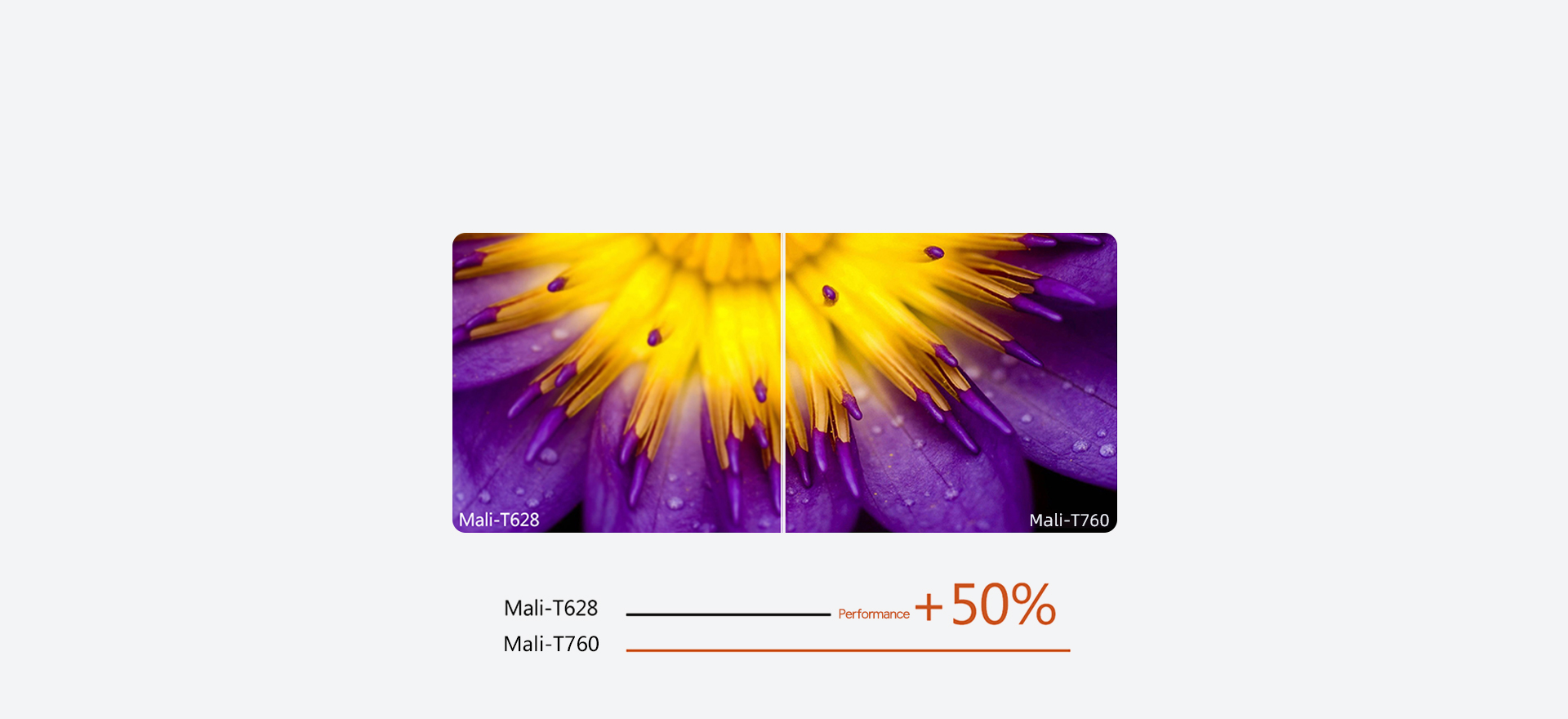

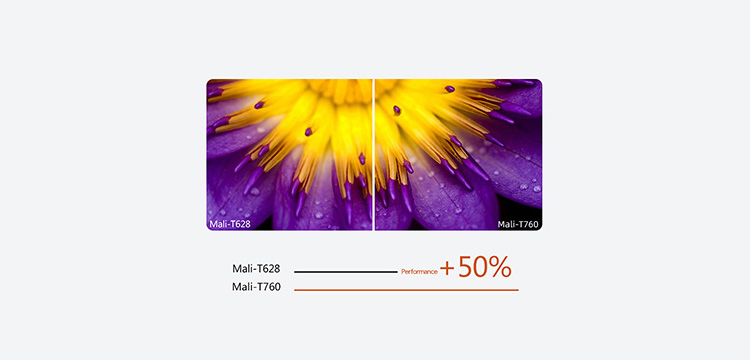

The ARM® Mali-T760 GPU supports OpenGL ES 1.1/2.0/3.0, OpenVG1.1, OpenCL, Directx11, and has embedded high-performance 2D acceleration hardware. Compared with the previous generation Mali-T628, the performance is improved by 50%.
It can be used in many practical applications such as computer vision, machine learning, and 4K 3D rendering. The integrated hardware decoding can better support H.265HEVC and VP9, H.264 encoding, and 4K HDR.

Mali-T764GPU Quad-core Graphics Processor

MIPI Camera Interface

With MIPI-CSI interface and ISP (Lmage Signal Processor, pixel processing capacity up to 800MPix/s), it can realize simultaneous input of camera data, and support high-level processing such as panoramic shooting, gesture detection, attempt detection, and 3D.

MIPI Camera Interface

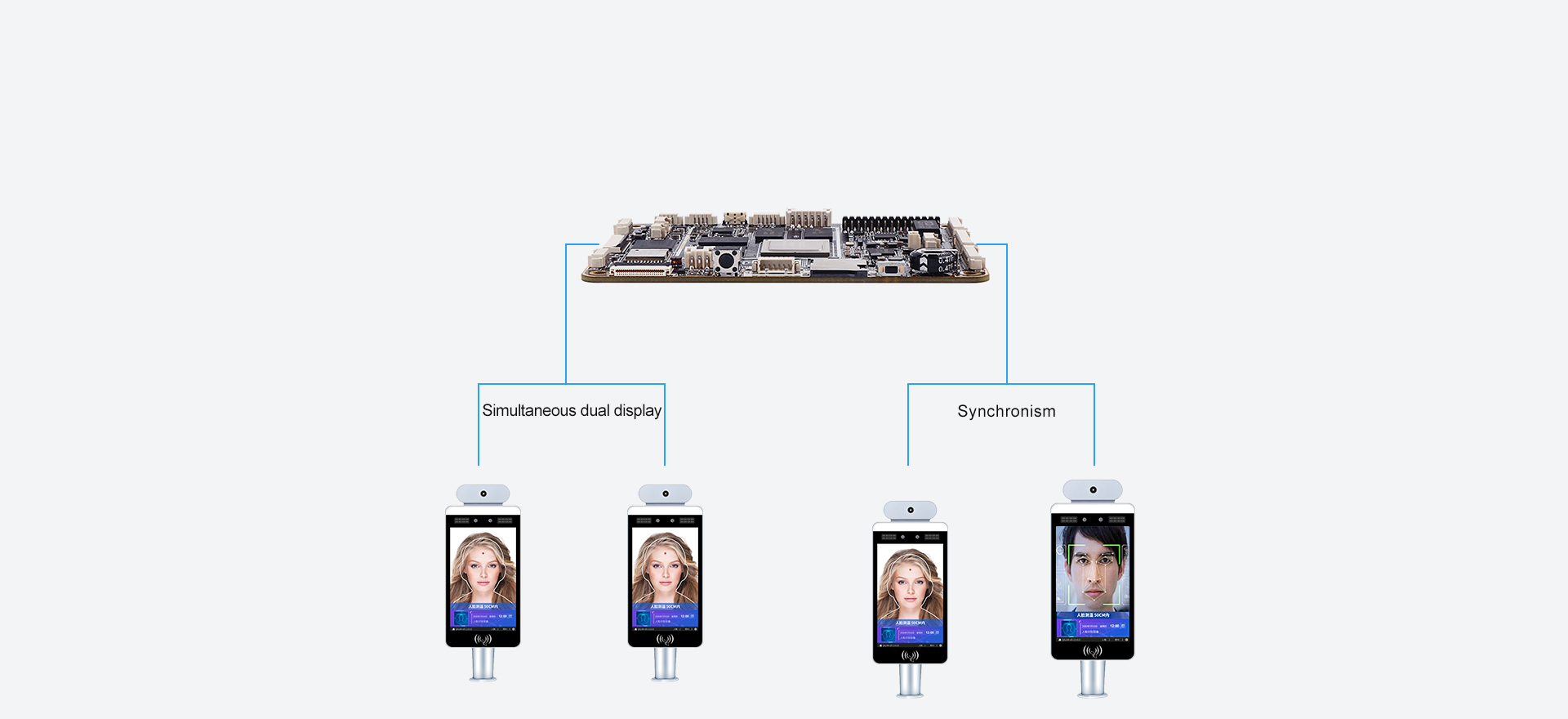

Support Dual-screen Simultaneous Display, Dual-screen Different Display

The dual-screen display supports ultra-high resolution, there is no screen size problem, and it can be applied to more industries.

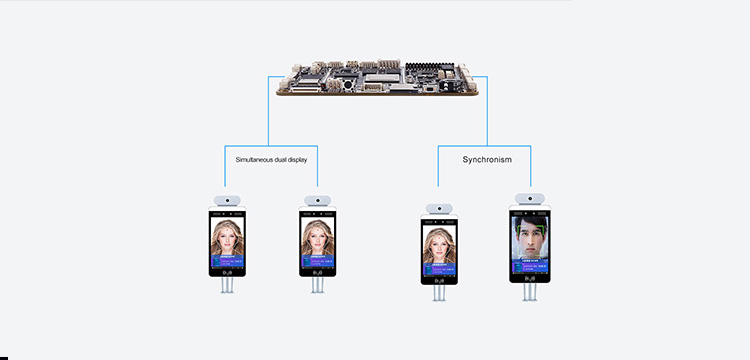

Support Dual-screen Simultaneous Display, Dual-screen Different Display

The dual-screen display supports ultra-high resolution, there is no screen size problem, and it can be applied to more industries.

MINI3288 Smart Motherboard Wide Range of Application Scenarios

Smart Home, Smart Education, Smart Projection, Smart Vehicle, KTV, Internet of Things, Smart Network Videophone, POS Machine, Digital Signage Hardware Platform, Hotel Smart Interactive TV, IPTV/DVB OTT Integration, Remote Smart Display System.

MINI3288 Smart Motherboard Wide Range of Application Scenarios

1. Multi-channel display interface: support MIPI, HDMI, EDP, LVDS multiple display output interfaces. It can support dual-screen simultaneous display/dual-screen different display.

2. High-performance peripheral interface: 2 USB2.0 (supports multi-channel USB interface for screen expansion).

3. Various network interfaces: 2.4GHz/5GHz dual-band WIFI, Bluetooth4.1, Gigabit Ethernet, 3G/4G communication module with onboard Mini PCIe interface that can expand the screen.

4. MIPI camera interface, maximum support 13 million pixels.

5. Rich external development interface, serial port, GPIO, microwave, MIC, three-color fill light, earphone, etc.

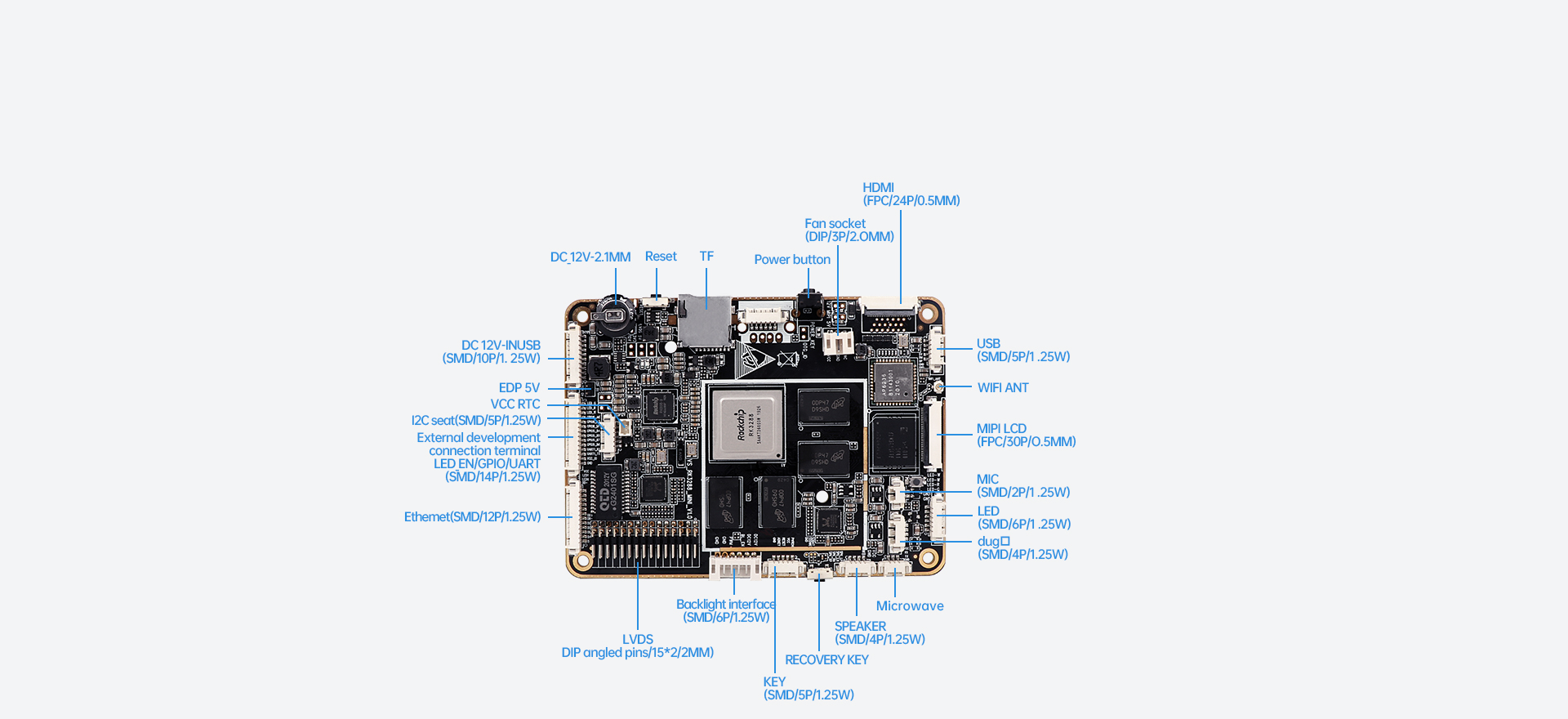

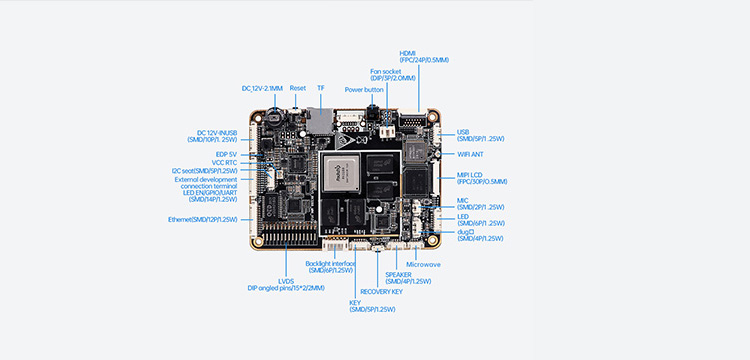

Product specification

CPU
ARM® Cortex™-A17, up to 1.8GHz
GPU
ARM® Mali-T760 MP4 supports OpenGL ES 1.1/2.0 /3.0, OpenVG1.1,
OpenCL, Directx11, embedded high-performance 2D acceleration hardware
Support 4K H.264 and 10bits H.265 video decoding, 1080P multi-format video decoding, 1080P video encoding,
Supports H.264, VP8 and MVC
DDR
Dual-channel 1866 / DDR3 (up to 4G)
Storage
High-speed eMMC 8G/16G/32G (optional), support MicroSD (TF) card
PMU management
RK808 PMU chip
Video decoding
support 4K 10bits VP9/H265/H264 video decoding, up to 60fps 1080P multi-format video decoding (VC-1, MPEG-1/2/4, VP8) 1080P video encoding, support H.264, VP8 format
Video Post Processor : Deinterlacing, Denoising, Edge/Detail/Color Optimization
Audio Format
Support MP3/WAV/WMA/DTS-HD/LPCM/H264/VP8/MVC
Video format
support RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc
Photo Format
Support JPG/BMP/GIF/TIFF/PNG
Display resolution
up to 3840X2160 resolution, and supports HDMI2.0
OS
Android 7.1
Ethernet
10/100/1000Mbps Ethernet (Realtek RTL8211E)
Wireless network
2.4GHz/5GHz dual-band WiFi supports 802.11a/b/g/n/ac protocol, Bluetooth 4.1
Display
Dual VOP display : resolution supports 4096X2160 and 2560X1600 respectively
1 x HDMI 2.0 (Type-A), up to 4K @ 60fps
1 x LVDS Dual 10-bit (DisplayPort), 1 x eDP 1.3 (4 lanes, 10.8Gbps)
1 x MIPI, 4-line support 2560x1600 @ 60fps
Audio
1 x HDMI audio output
1x headphone audio output
2x speaker ports, speaker output (1.5W8Ω/ 2.5W4Ω)
1 x microphone, onboard audio input
USB Port
2 x USB2.0 HOST
TF Card
1 x TF Card
Serial
2 x UART TTL optional,
1 x RS232 optional
1 x RS485 optional
Camera Port
1 x MIPI-CSI camera port (up to single 13M pixels or dual 8M pixels
Fill light port
1 x three-color fill light (6P/1.25mm)
Touch screen ports
2 X support I2C touch
LEDs
1 x Power Status LED (Red), 1 x User Defined LED (Blue)
Microwave Port
1 x Microwave Induction (3P/1.25mm)
RTC port
1 x RTC clock battery (2P/1.25mm pitch)
Buttons
1 x reset, 1 x power, 1 x recovery, 1 x button port (5P/1.25mm)
Power Supply
1 x DC12V - 2A (DC 5.5*2.1mm)
I2C
1 x I2C (5P/1.25mm)
External development port
14pin 1.25mm/SMD
1 x SPI, 1 x UART, 3 x GPIO
System upgrade
USB upgrade, TF upgrade
