Hybrid TV Box
Hybrid TV Box
Enjoy Big Screen

Support DLNA 、Miracast、Airplay. You Can Play Games and movies on the big screen

Enjoy Big Screen

Support DLNA 、Miracast、Airplay. You Can Play Games and movies on the big screen

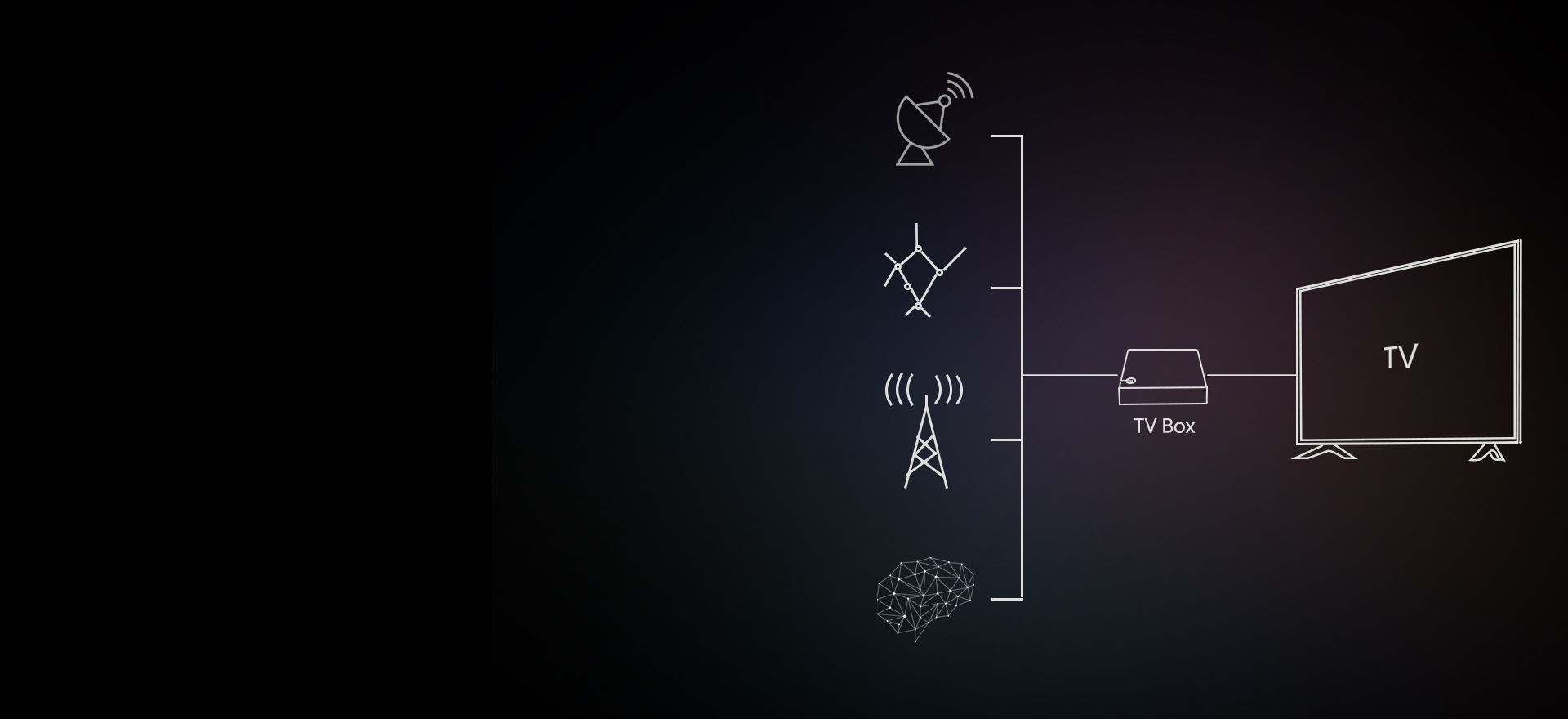

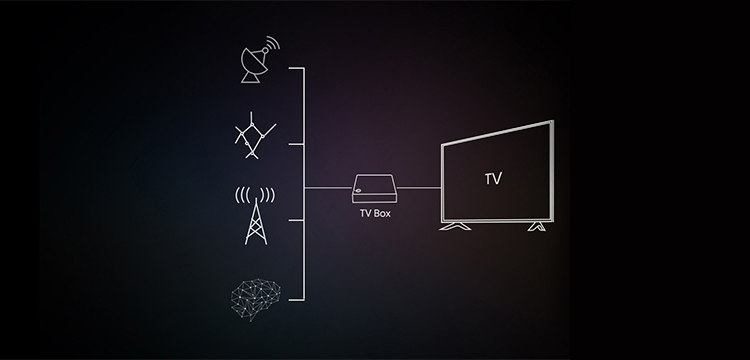

Support DVB T2 S2 C and Internet

Various ways to choose

Support DVB T2 S2 C and Internet

Various ways to choose

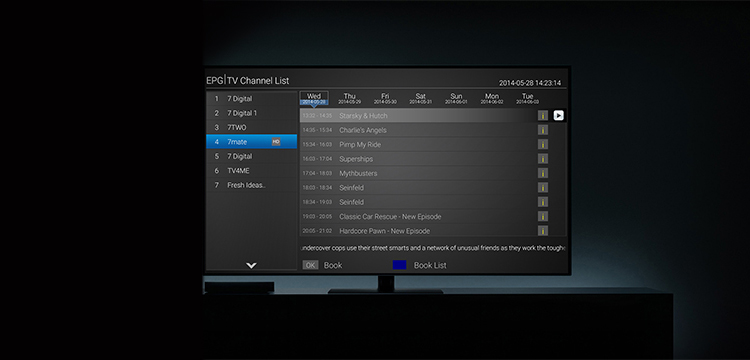

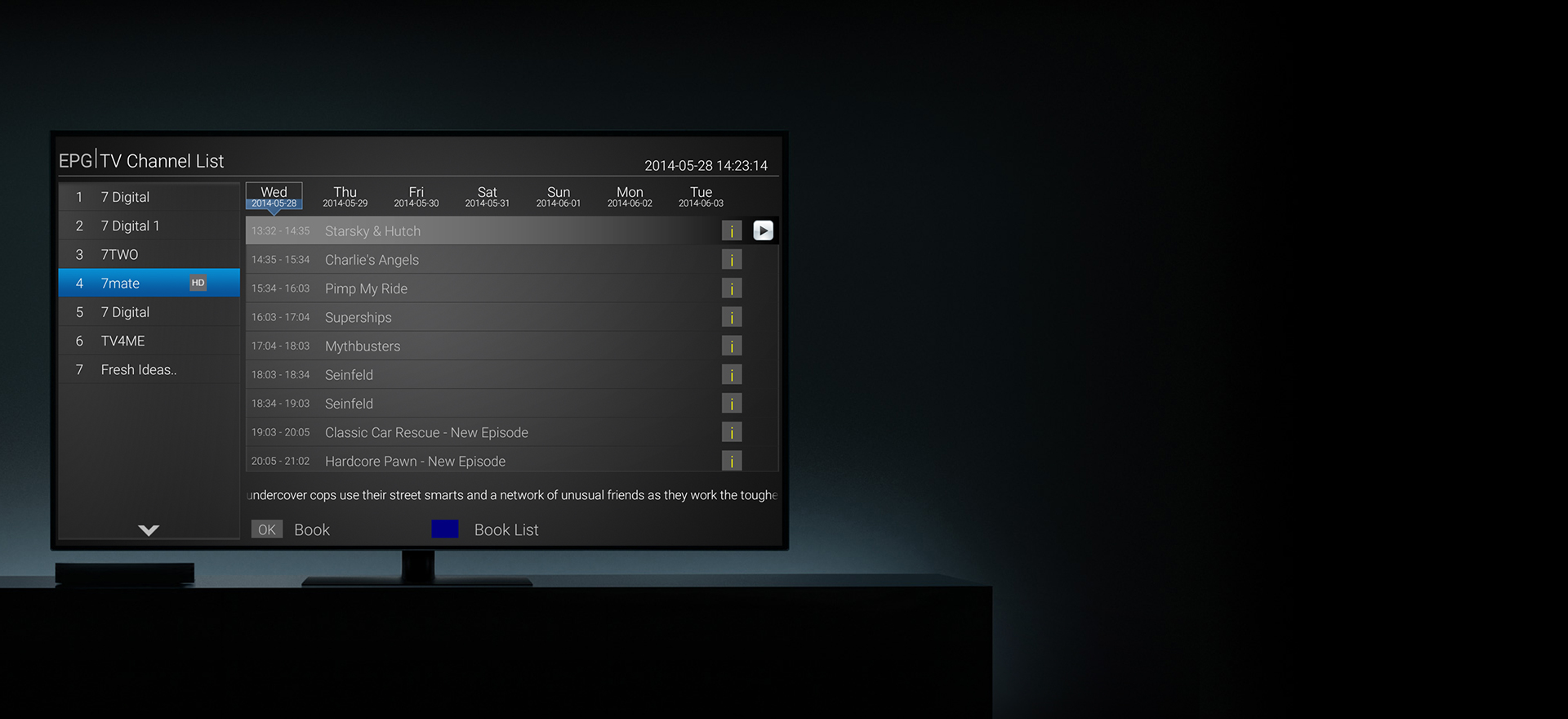

Support EPG and Favorite Show Setting

Power and effective 7-day EPG function.View and favorite program listings and channel information is very convenient

Support EPG and Favorite Show Setting

Power and effective 7-day EPG function.View and favorite program listings and channel information is very convenient

1.Enjoy Big Screen,Support DLNA 、Miracast、Airplay. You Can Play Games and movies on the big screen

2.Support EPG and Favorite show setting,Power and effective 7-day EPG function.View and favorite program listings and channel information is very convenient

3.Support DVB T2 S2 C and internet




Product specification
  • CPU

    Amlogic S905X3 Quad core ARM Cortex-A55 CPU

  • GPU

    Mail-G31 MP2 GPU

  • RAM

    2GB ( 4GB optional )

  • ROM

    16GB ( Other ROM capacity optional )

  • WiFi

    2.4G/5G 2T2R WiFi with IEEE 802.11 b/g/n/ac

  • Bluetooth

    4.2

  • IR

    Infra Remote control

  • LAN Ethernet

    10/100M

  • LED Indicator

    Power ON :blue; Standby:Red

  • I/O

    HDTV 2.1:1* HDTV 2.1 Dynamic HDR 4Kx2K@60 max resolution output
    1*USB3.0:High speed USB 3.0,support U DISK and USB HDD
    1*USB2.0:High speed USB 2.0,support U DISK and USB HDD
    1*AV:CVBS&L/R output
    1*OPTICAL:OPTICAL digital audio output
    1*RJ45:10/100M BaseT
    1*MICRO SD:Support MICRO SD
    1*DC IN:DC Adapter 12V/1A
    DVB S2+T2:Support dual mode DVB T2+S2

  • OS

    android 9.0

  • Video decoder

    hardware decoders
    - VP9 Profile-2 up to 4Kx2K@60fps
    - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
    - AVS2-P2 Profile up to 4Kx2K@60fps
    - H.264 AVC HP@L5.1 up to 4Kx2K@30fps
    - H.264 MVC up to 1080P@60fps
    - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
    - WMV/VC-1 SP/MP/AP up to 1080P@60fps
    - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
    - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
    - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
    - RealVideo 8/9/10 up to 1080P@60fps

  • Video encoder

    Video/Picture Encoding
    - Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate
    - JPEG image encoding
    - H.265/H.264 video encoding up to 1080P@60fps with low latency

  • HDR

    Dynamic HDR10, HDR10, HLG, and Technicolor HDR processing

  • Decoder format

    HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid,RealVideo8/9/10

  • Media format

    Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

  • Music format

    Supports MP3, AAC, WMA, RM, FLAC, and Ogg and is programmable with 7.1/5.1 down-mixing

  • Photo format

    HD JPEG/BMP/GIF/PNG/TIFF

  • Network Function

    Miracast,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.

  • Language

    Chinese, English, Germany, Japanese, Korea, etc. 24 languages
